Omron
A3AT-90L1-00EG
Switch Push Button N.O. SPST Round Button 4A 250VAC 30VDC Alternate Contact Solder Panel Mount
Current Rating4A
MountingPanel
Quick Jump:
Technical Specifications
Omron A3AT-90L1-00EG technical specifications.
General
Actuator Type
Round, Button
Current Rating
4A
Electrical Life
50000Cycles
Illumination Color
Green
Illumination Type
LED
Max Operating Temperature
55°C
Mechanical Life
50000Cycles
Min Operating Temperature
-10°C
Mount
Panel
Package Quantity
1
Packaging
Bulk
Ratings
IP00
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
A3A
Switch Function
Off-On
Termination
Solder
Throw Configuration
SPST
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron A3AT-90L1-00EG Datasheet
Download the complete datasheet for Omron A3AT-90L1-00EG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

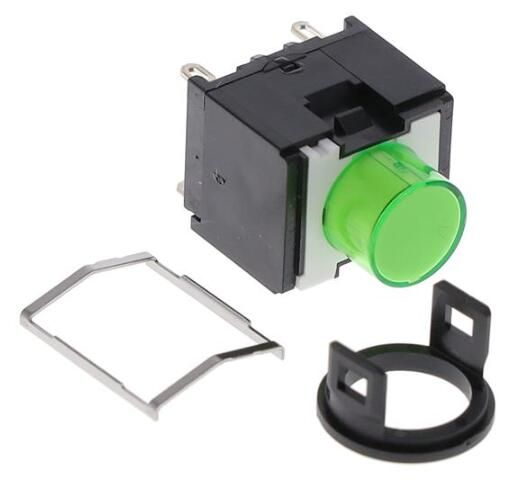

Product Images
