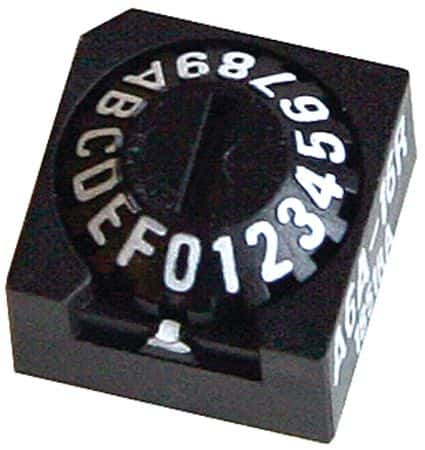

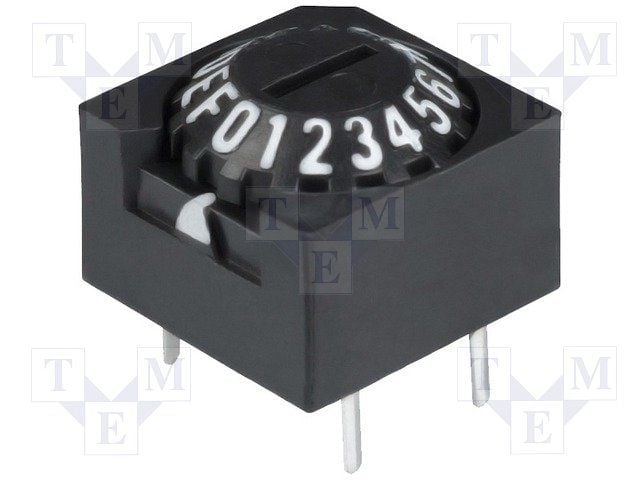

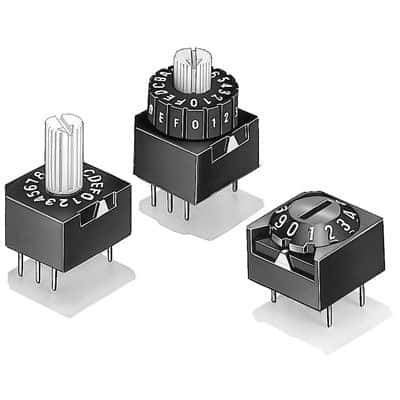

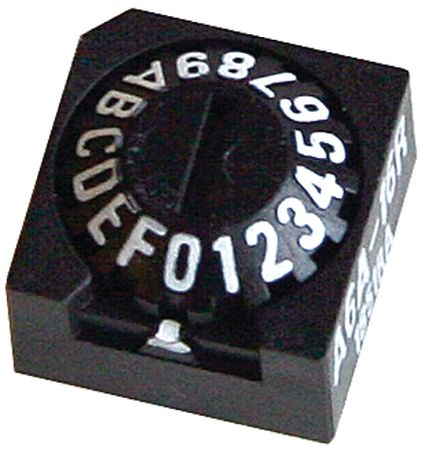

16-position rotary DIP switch with SP16T throw configuration. Features gold/silver plated bronze contacts, 100mA current rating, and 28VDC voltage rating. Through-hole mounting with PC pin termination and 2.54mm terminal pitch. Offers 10,000 mechanical cycles and 2,000 electrical cycles. Operates within a -10°C to 70°C temperature range. RoHS compliant and washable.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron A6A-16R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron A6A-16R technical specifications.
| Actuator Length | 1.3mm |
| Actuator Type | Rotary |
| Package/Case | DIP |
| Contact Material | Bronze |
| Contact Plating | Gold, Silver |
| Current Rating | 100mA |
| Depth | 10mm |
| Electrical Life | 2000Cycles |
| Lead Free | Lead Free |
| Length | 10mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (DC) | 28V |
| Mechanical Life | 10000Cycles |
| Mount | Through Hole |
| Number of Positions | 16 |
| Number of Switches | 16 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Box |
| Pitch | 0.1inch |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | A6A |
| Switching Current | 100mA |
| Switching Voltage | 28V |
| Terminal Pitch | 2.54mm |
| Termination | PC Pins |
| Throw Configuration | SP16T |
| DC Rated Voltage | 28V |
| Washable | Yes |
| Weight | 0.028219oz |
| RoHS | Compliant |
