Rotary DIP switch with 16 positions and a 22.5° index angle. Features a 100 mA contact current rating at 250 V AC / 30 V DC. Constructed with gold-plated stainless steel contacts, offering 2000 electrical cycles and 10000 mechanical cycles. Mounts via through-hole with a 2.54mm terminal pitch, designed for right-angle orientation. RoHS compliant and lead-free.
PackageDIP
Current Rating100mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron A6CV-16R technical specifications.
General
Actuator Length
0mm
Actuator Type
Rotary
Package/Case
DIP
Contact Current Rating
100mA
Contact Material
Stainless Steel, Gold
Contact Plating
Gold
Current Rating
100mA
Depth
7.62mm
Electrical Life
2000Cycles
Illumination Type
Illuminated
Index Angle
22.5°
Lead Free
Lead Free
Length
9mm
Max Current Rating
100mA
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
30V
Mechanical Life
10000Cycles
Mount
Through Hole
Number of Poles
1
Number of Positions
16
Number of Switches
16
Orientation
Right Angle
Package Quantity
100
Packaging
Bulk
Pitch
0.1inch
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
A6C
Terminal Pitch
2.54mm
Termination
PC Pins
Throw Configuration
SP16T
DC Rated Voltage
30V
Washable
No
Weight
0.01411oz
Compliance
RoHS
Compliant
Datasheet
Omron A6CV-16R Datasheet
Download the complete datasheet for Omron A6CV-16R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

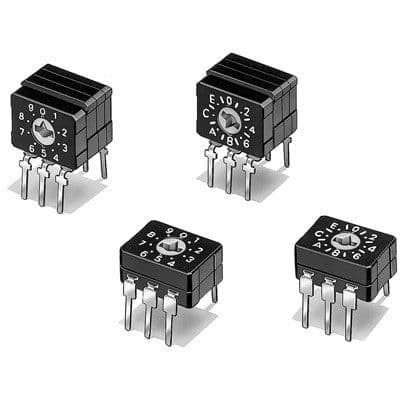

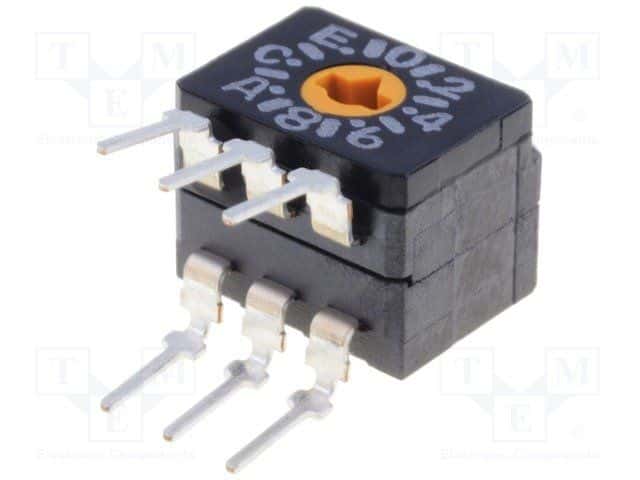

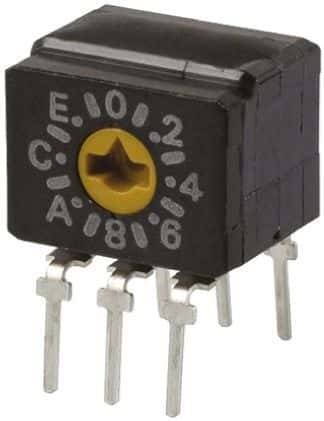

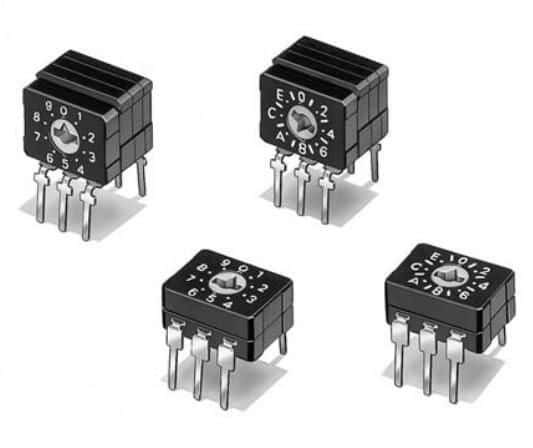

Product Images
