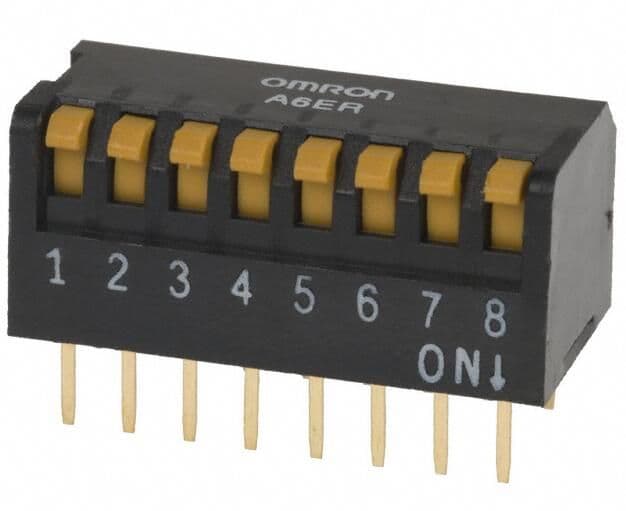

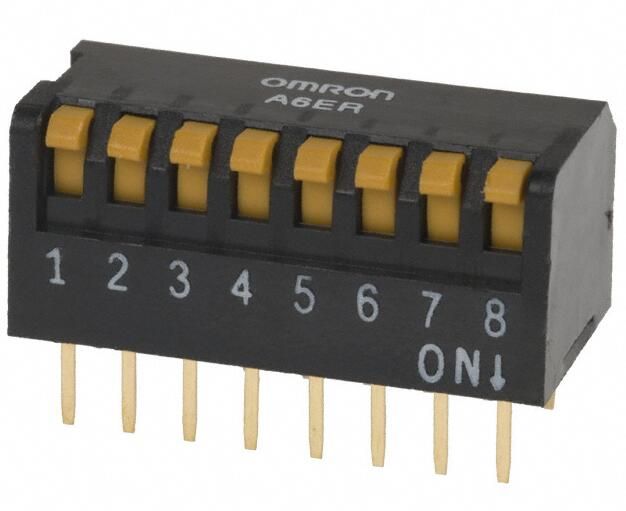

8-position SPST DIP switch with through-hole mounting and PC pin termination. Features a 25mA contact current rating and 24VDC voltage rating, with gold-plated contacts for enhanced conductivity. Offers an electrical and mechanical life of 1000 cycles, operating within a temperature range of -20°C to 70°C. RoHS compliant and lead-free, this unsealed rotary and slide actuator switch is designed for reliable electronic applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron A6ER-8101 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | PIANO |
| Contact Current Rating | 25mA |
| Contact Plating | Gold |
| Current Rating | 25mA |
| Electrical Life | 1000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Mechanical Life | 1000Cycles |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 24V |
| Mount | Through Hole |
| Number of Circuits | 8 |
| Number of Positions | 8 |
| Orientation | Straight |
| Package Quantity | 21 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | A6ER |
| Terminal Pitch | 2.54mm |
| Termination | PC Pins |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Washable | No |
| Weight | 2.51g |
| RoHS | Compliant |
