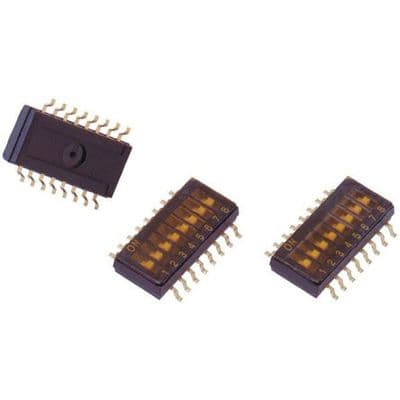

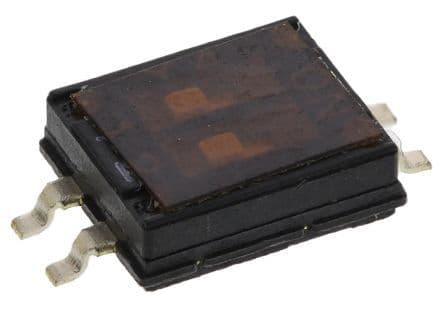

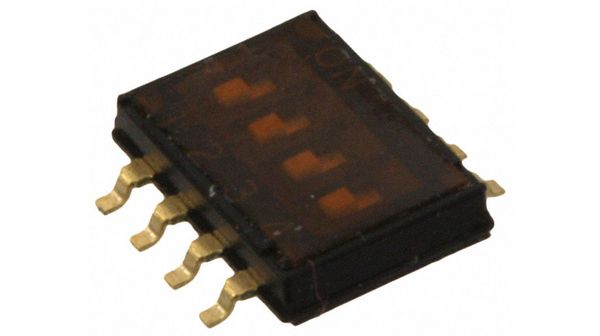

SPST DIP switch featuring a slide actuator and gull wing termination for surface mounting. This sealed, SMD component offers a 25mA current rating at 24VDC, with 8 poles and 2 positions across 2 circuits. It boasts a terminal pitch of 1.27mm and a pitch of 0.05inch, operating within a temperature range of -20°C to 70°C. With a mechanical and electrical life of 1000 cycles, this RoHS compliant switch is washable.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron A6H-2102 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron A6H-2102 technical specifications.
| Actuator Length | 0mm |
| Actuator Type | Slide (Standard) |
| Package/Case | DIP |
| Contact Current Rating | 25mA |
| Current Rating | 25mA |
| Electrical Life | 1000Cycles |
| Height | 1.55mm |
| Length | 0.148inch |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 1000Cycles |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Poles | 8 |
| Number of Positions | 2 |
| Orientation | Straight |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Pitch | 0.05inch |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | A6H |
| Terminal Pitch | 1.27mm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Washable | Yes |
| Weight | 0.06g |
| Width | 4.5mm |
| RoHS | Compliant |
