SPST DIP switch with a slide actuator, featuring 4 circuits and 4 poles. This surface-mount component offers a 25mA current rating at 24VDC, with a terminal pitch of 1.27mm and gull wing termination. Operating temperature range is -40°C to 70°C, with electrical and mechanical life rated at 1000 cycles. The switch is IP40 rated and RoHS compliant.
PackageDIP
Current Rating25mA
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Omron A6H-4101 technical specifications.
General
| Actuator Length | 0mm |
| Actuator Type | Slide (Standard) |
| Package/Case | DIP |
| Contact Current Rating | 25mA |
| Current Rating | 25mA |
| Depth | 6.7mm |
| Electrical Life | 1000Cycles |
| Length | 6.31mm |
| Max Current Rating | 25mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 1000Cycles |
| Mount | Surface Mount, PCB |
| Number of Circuits | 4 |
| Number of Poles | 4 |
| Number of Positions | 4 |
| Orientation | Straight |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | A6H |
| Terminal Pitch | 1.27mm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Washable | No |
| Weight | 0.003175oz |
Compliance
| RoHS | Compliant |
Datasheet
Omron A6H-4101 Datasheet
Download the complete datasheet for Omron A6H-4101 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

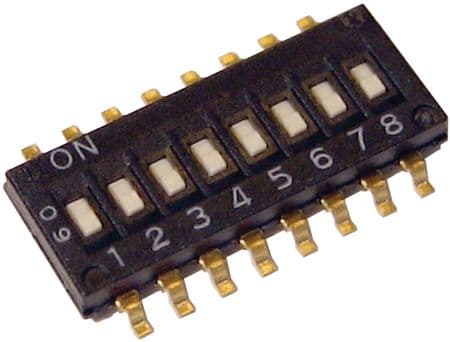

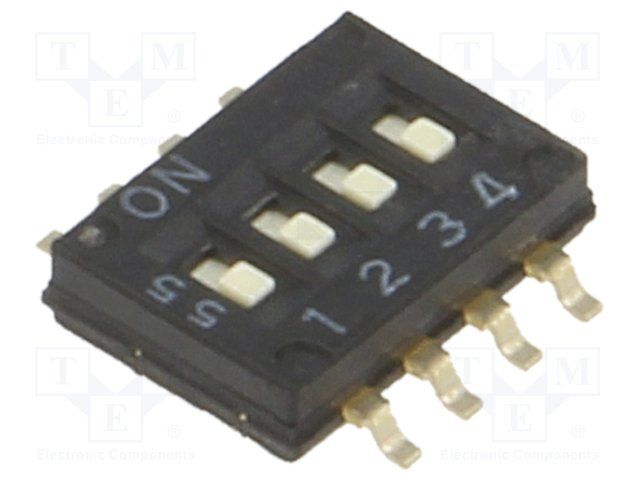

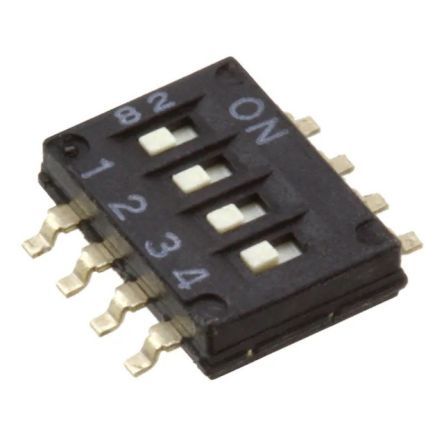

Product Images
