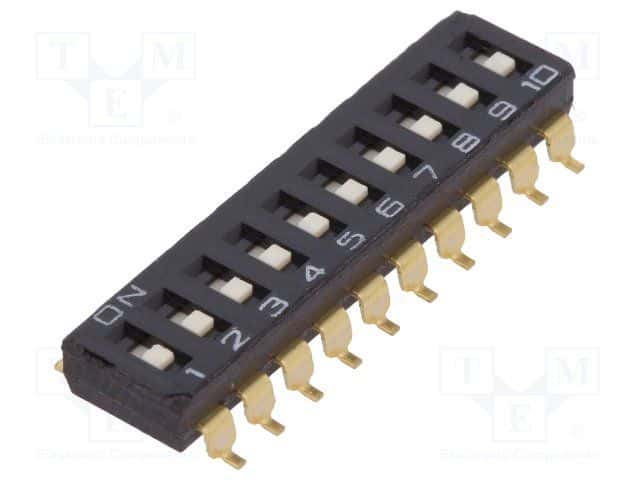

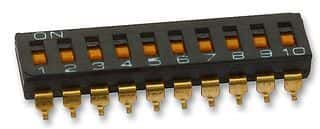

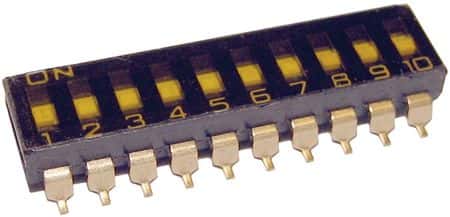

SPST DIP switch featuring a slide actuator, designed for surface mount applications with a 2.54mm terminal pitch. This sealed switch offers a 25mA contact current rating at 24VDC, with gold-plated contacts for enhanced reliability. It boasts a 10-position configuration and a 10-circuit design, suitable for operation within a -20°C to 70°C temperature range. The component is RoHS compliant and washable, with a mechanical and electrical life of 1000 cycles.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron A6S-0102-H datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron A6S-0102-H technical specifications.
| Actuator Length | 0mm |
| Actuator Type | Slide (Standard) |
| Package/Case | DIP |
| Contact Current Rating | 25mA |
| Contact Material | Gold |
| Contact Plating | Gold |
| Current Rating | 25mA |
| Electrical Life | 1000Cycles |
| Height | 3mm |
| Length | 1.037inch |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 1000Cycles |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Circuits | 10 |
| Number of Positions | 10 |
| Orientation | Straight |
| Package Quantity | 18 |
| Packaging | Rail/Tube |
| Pitch | 0.1inch |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | A6S-H |
| Terminal Pitch | 2.54mm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Washable | Yes |
| Weight | 0.87g |
| Width | 6.2mm |
| RoHS | Compliant |
