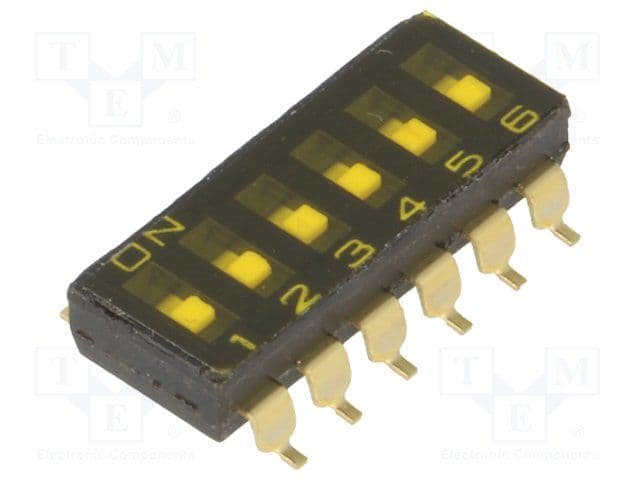

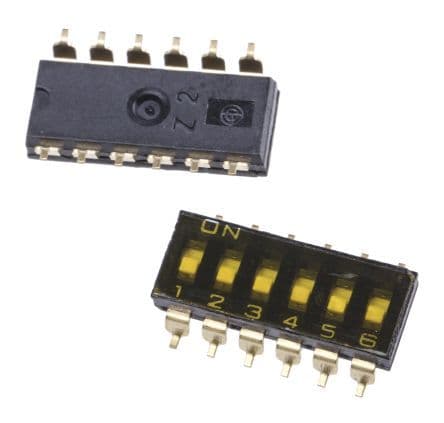

SPST DIP switch featuring a slide actuator, designed for surface mount applications with gull wing termination. This sealed, straight-oriented component offers 6 positions and 6 circuits, rated for 25mA at 24VDC with gold-plated contacts. It boasts a terminal pitch of 2.54mm and a mechanical and electrical life of 1000 cycles, operating within a temperature range of -20°C to 70°C. The switch is RoHS compliant and washable.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron A6S-6102-H datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron A6S-6102-H technical specifications.
| Actuator Length | 0mm |
| Actuator Type | Slide (Standard) |
| Package/Case | DIP |
| Contact Current Rating | 25mA |
| Contact Material | Gold |
| Contact Plating | Gold |
| Electrical Life | 1000Cycles |
| Height | 3mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 1000Cycles |
| Mount | Surface Mount |
| Number of Circuits | 6 |
| Number of Positions | 6 |
| Orientation | Straight |
| Package Quantity | 28 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | A6S-H |
| Terminal Pitch | 2.54mm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Washable | Yes |
| Weight | 0.020459oz |
| Width | 6.2mm |
| RoHS | Compliant |
