8-position SPST DIP switch with slide actuator, featuring gold-plated contacts for 25mA at 24VDC. This surface-mount component offers a 2.54mm terminal pitch and gull wing termination, designed for straight orientation. It boasts a mechanical and electrical life of 1000 cycles and operates within a temperature range of -20°C to 70°C. RoHS compliant and lead-free.
PackageDIP
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron A6S-8104-H technical specifications.
General
Actuator Length
0.7mm
Actuator Type
Slide (Standard)
Package/Case
DIP
Contact Current Rating
25mA
Contact Material
Gold
Contact Plating
Gold
Depth
9.8mm
Electrical Life
1000Cycles
Lead Free
Lead Free
Length
21.26mm
Max Current Rating
25mA
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
24V
Mechanical Life
1000Cycles
Mount
Surface Mount
Number of Circuits
8
Number of Positions
8
Orientation
Straight
Package Quantity
22
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
A6S-H
Terminal Pitch
2.54mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
No
Weight
0.73g
Compliance
RoHS
Compliant
Datasheet
Omron A6S-8104-H Datasheet
Download the complete datasheet for Omron A6S-8104-H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

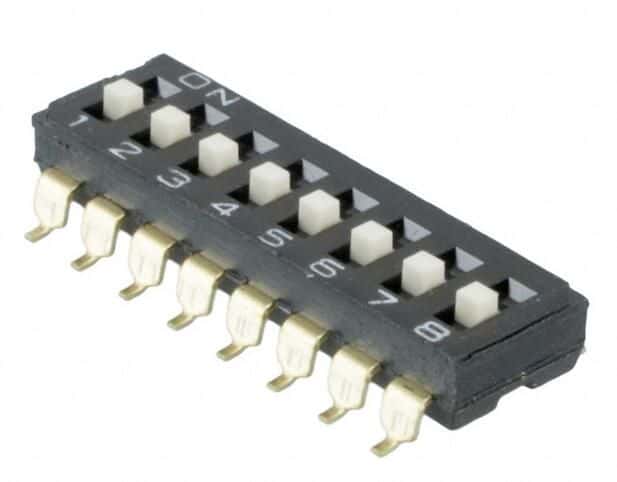

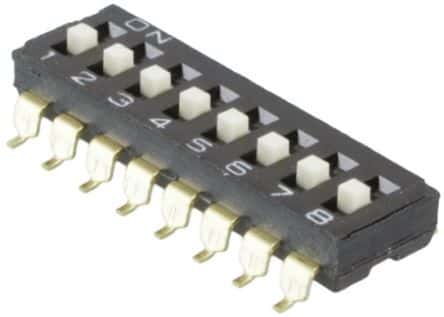

Product Images
