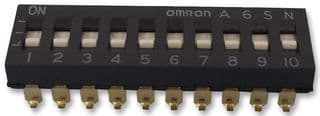

10-position, SPST DIP switch featuring a slide actuator and surface mount termination with gull wing leads. This unsealed rotary & slide actuator switch offers a 25mA contact current rating at 24VDC, with gold contacts and a terminal pitch of 2.54mm. Designed for a 0.1-inch pitch, it boasts electrical and mechanical life cycles of 1000, operates within a temperature range of -30°C to 85°C, and is RoHS compliant and washable.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron A6SN-0101 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron A6SN-0101 technical specifications.
| Actuator Type | Slide (Standard) |
| Contact Current Rating | 25mA |
| Contact Material | Gold |
| Current Rating | 25mA |
| Electrical Life | 1000Cycles |
| Height | 3.5mm |
| Length | 1.076inch |
| Max Operating Temperature | 85°C |
| Mechanical Life | 1000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Number of Circuits | 10 |
| Number of Positions | 10 |
| Package Quantity | 15 |
| Packaging | Rail/Tube |
| Pitch | 0.1inch |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | A6SN |
| Terminal Pitch | 2.54mm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Washable | Yes |
| Width | 7.5mm |
| RoHS | Compliant |
