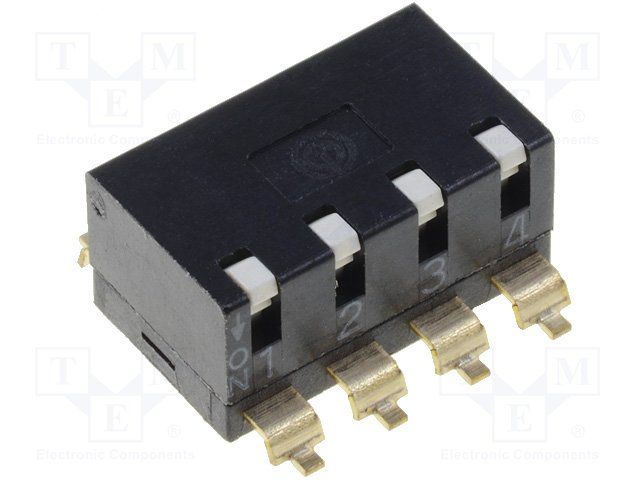

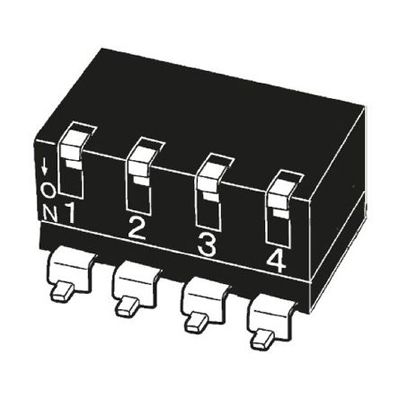

4-pole, SPST DIP switch featuring a piano actuator and surface mount termination with gull wing leads. Offers a 25mA contact current rating at 24VDC, with gold-plated contacts for enhanced reliability. Designed for 4 positions with a 2.54mm terminal pitch, this RoHS compliant component operates within a temperature range of -20°C to 70°C and boasts an electrical and mechanical life of 1000 cycles.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron A6SR-4101 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron A6SR-4101 technical specifications.
| Actuator Length | 0mm |
| Actuator Type | PIANO |
| Contact Current Rating | 25mA |
| Contact Material | Gold |
| Contact Plating | Gold |
| Current Rating | 25mA |
| Electrical Life | 1000Cycles |
| Height | 5mm |
| Length | 0.396inch |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 1000Cycles |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Poles | 4 |
| Number of Positions | 4 |
| Orientation | Straight |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Pitch | 0.1inch |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | A6SR |
| Terminal Pitch | 2.54mm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Washable | No |
| Weight | 0.48g |
| Width | 9.8mm |
| RoHS | Compliant |
