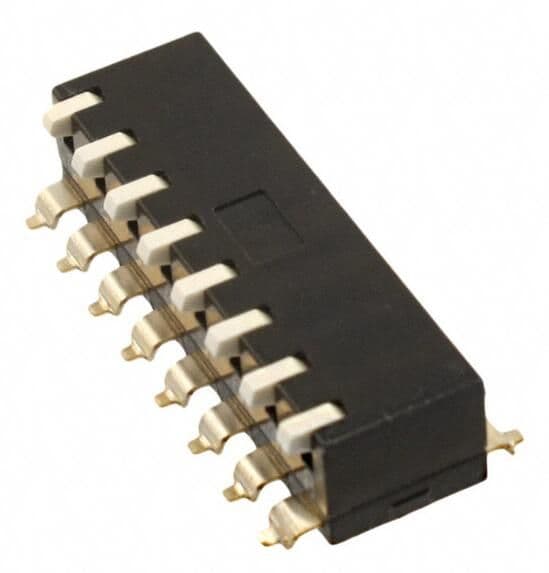

8-position, SPST DIP switch featuring a piano actuator with a 0.9mm length. This surface mount component offers a 25mA contact current rating and a 24V DC voltage rating, with gold-plated contacts for enhanced reliability. Designed for straight orientation with a 2.54mm terminal pitch and gull wing termination, it boasts an electrical and mechanical life of 1000 cycles. Operating within a temperature range of -20°C to 70°C, this RoHS compliant switch is packaged for efficient assembly.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron A6SR-8104 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron A6SR-8104 technical specifications.
| Actuator Length | 0.9mm |
| Actuator Type | PIANO |
| Contact Current Rating | 25mA |
| Contact Material | Gold |
| Contact Plating | Gold |
| Current Rating | 25mA |
| Electrical Life | 1000Cycles |
| Height | 5mm |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 1000Cycles |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Poles | 8 |
| Number of Positions | 8 |
| Orientation | Straight |
| Package Quantity | 23 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | A6SR |
| Terminal Pitch | 2.54mm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Washable | No |
| Weight | 0.97g |
| Width | 9.8mm |
| RoHS | Compliant |
Download the complete datasheet for Omron A6SR-8104 to view detailed technical specifications.
