8-position, SPST DIP switch featuring a slide actuator with a 0.6mm length. This through-hole component offers PC pin termination with a 2.54mm terminal pitch. It is rated for 25mA at 24VDC, with a gold contact plating and an electrical and mechanical life of 1000 cycles. The switch operates within a temperature range of -20°C to 70°C and is RoHS compliant.
PackageDIP
Current Rating25mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron A6T-8104 technical specifications.
General
Actuator Length
0.6mm
Actuator Type
Slide (Standard)
Package/Case
DIP
Contact Current Rating
25mA
Contact Material
Gold
Contact Plating
Gold
Current Rating
25mA
Depth
7.62mm
Electrical Life
1000Cycles
Height
4.2mm
Lead Free
Lead Free
Length
21.26mm
Max Current Rating
25mA
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
24V
Mechanical Life
1000Cycles
Mount
Through Hole
Number of Circuits
8
Number of Positions
8
Orientation
Straight
Package Quantity
22
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
A6T
Terminal Pitch
2.54mm
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
No
Weight
0.79g
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Omron A6T-8104 Datasheet
Download the complete datasheet for Omron A6T-8104 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

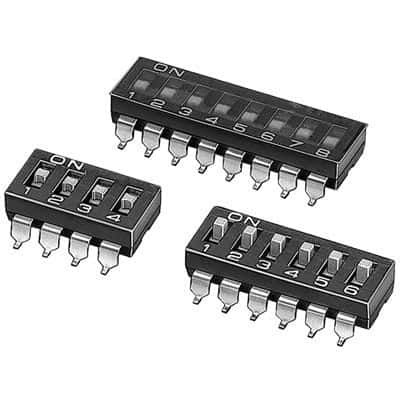

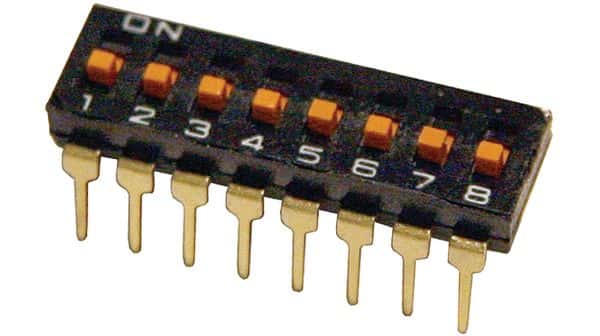

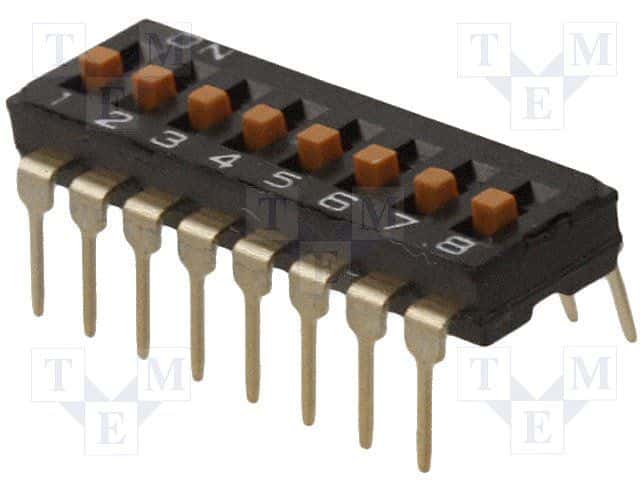

Product Images
