Technical Specifications
Omron A6TN-1101 technical specifications.
General
| Actuator Type | Slide (Standard) |
| Current Rating | 25mA |
| Electrical Life | 1000Cycles |
| Length | 0.176inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (DC) | 24V |
| Mount | Through Hole |
| Number of Positions | 1 |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Pitch | 0.1inch |
| RoHS Compliant | Yes |
| Series | A6TN |
| Termination | PC Pin |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Omron A6TN-1101 Datasheet
Download the complete datasheet for Omron A6TN-1101 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

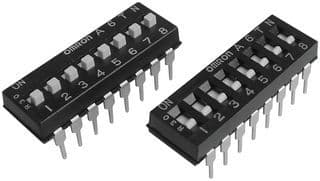

Product Images
