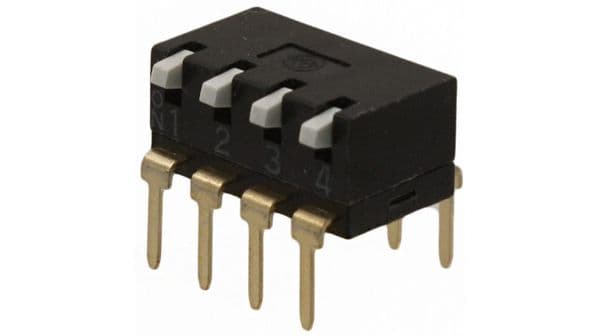

Rotary & Slide Actuator DIP Switch, SPST, Through Hole mount. Features 4 circuits and 4 positions with a straight orientation. Offers a 25mA contact current rating and 24VDC voltage rating, utilizing gold-plated contacts for durability. Electrical and mechanical life rated at 1000 cycles. Terminal pitch is 2.54mm, with a compact 6.2mm width and 4.2mm height. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron A6TR-4104 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 0.9mm |
| Actuator Type | PIANO |
| Contact Current Rating | 25mA |
| Contact Material | Gold |
| Contact Plating | Gold |
| Current Rating | 25mA |
| Electrical Life | 1000Cycles |
| Height | 4.2mm |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 1000Cycles |
| Min Operating Temperature | -20°C |
| Mount | Through Hole, PCB |
| Number of Circuits | 4 |
| Number of Poles | 4 |
| Number of Positions | 4 |
| Orientation | Straight |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | A6TR |
| Terminal Pitch | 2.54mm |
| Termination | PC Pins |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Washable | No |
| Weight | 0.5g |
| Width | 6.2mm |
| RoHS | Compliant |
