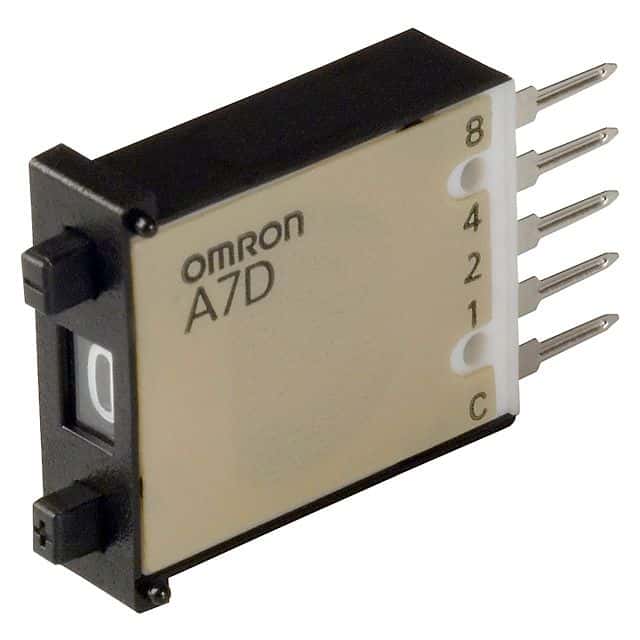

Thumbwheel switch with BCD output, featuring a 10-position rotary design and PC pin termination for board mounting. Rated for 0.1A at 30VDC, this black switch offers a robust electrical life of 20,000 cycles and a mechanical life of 30,000 cycles. Operating within a temperature range of -10°C to 70°C, it supports panel and snap-in mounting. RoHS compliant and lead-free, this component is supplied in bulk packaging.
MountingPanel, Snap in, Board
Quick Jump:
Technical Specifications
Omron A7D-206-1 technical specifications.
General
| Color | Black |
| Contact Current Rating | 100mA |
| Electrical Life | 20000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 30000Cycles |
| Min Operating Temperature | -10°C |
| Mount | Panel, Snap in, Board |
| Number of Positions | 10 |
| Package Quantity | 100 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | A7D |
| Termination | PC Pin |
| DC Rated Voltage | 30V |
| Width | 0.63mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron A7D-206-1 Datasheet
Download the complete datasheet for Omron A7D-206-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
