Current Rating10A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
Omron A8L-21-15N2 technical specifications.
General
Actuator Color
Black
Color
Black
Current Rating
10A
Electrical Life
10000Cycles
Illumination Type
Illuminated
Max Operating Temperature
55°C
Max Voltage Rating (AC)
250V
Mechanical Life
50000Cycles
Min Operating Temperature
-20°C
Mount
Panel, Snap in
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
A8L
Switch Function
On-Off
Termination
Quick Connect
Throw Configuration
DPST
Voltage Rating (AC)
125V
Compliance
RoHS
Compliant
Datasheet
Omron A8L-21-15N2 Datasheet
Download the complete datasheet for Omron A8L-21-15N2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

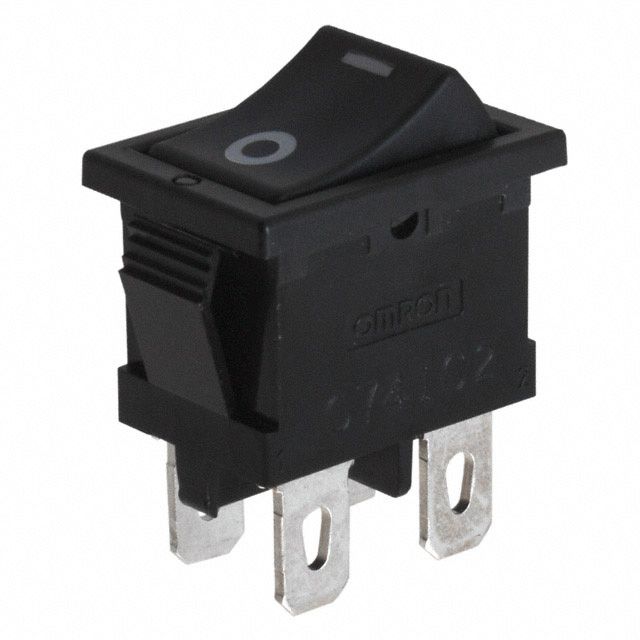

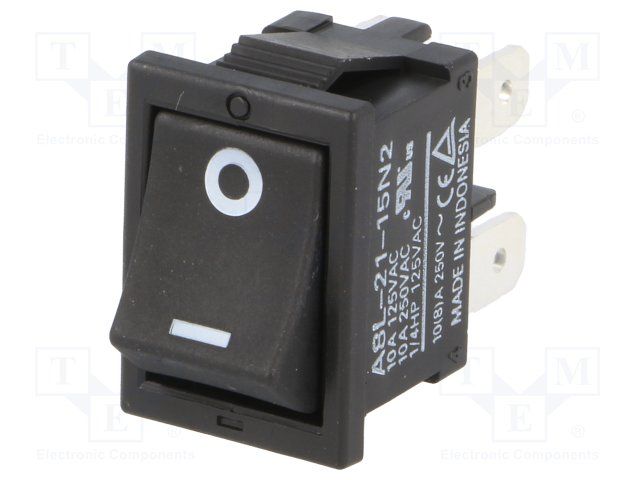

Product Images
