Black, square switch cap designed for tactile switches. Features a 4mm height and 2.5mm width, with an overall size of 5.5mm. This non-illuminated accessory operates within a temperature range of -25°C to 70°C and is RoHS compliant. Mounts externally and is supplied in bulk packaging.
Storage5.5mm
MountingExternal
Quick Jump:
Technical Specifications
Omron B32-1010 technical specifications.
General
| Color | Black |
| Height | 4mm |
| Illumination Type | Non-Illuminated |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | External |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | B32 |
| Shape | Square |
| Size | 5.5mm |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron B32-1010 Datasheet
Download the complete datasheet for Omron B32-1010 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

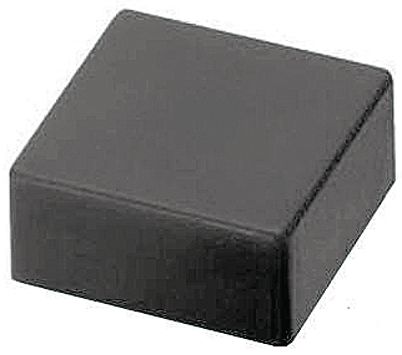

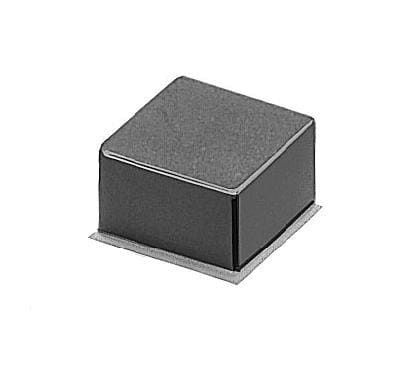

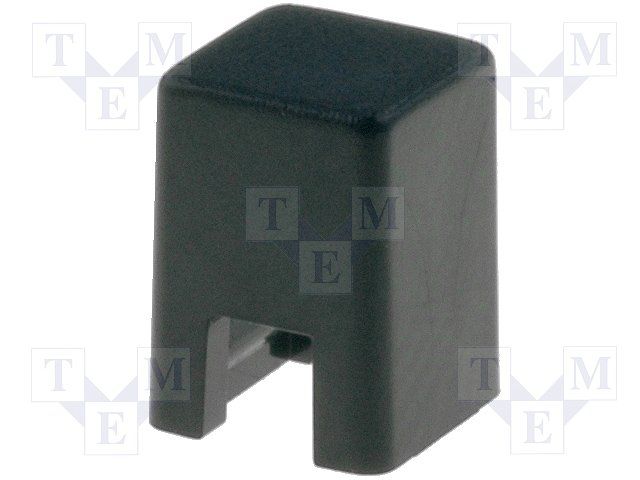

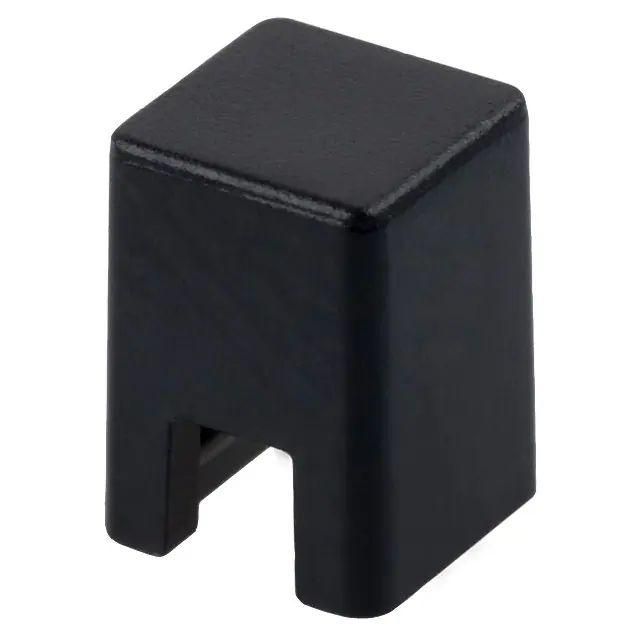

Product Images
