Blue, square switch cap designed for tactile switches. Features a 5.5mm size with a 4mm height and 2.5mm width. Operating temperature range spans from -25°C to 70°C. This non-illuminated component is RoHS compliant and lead-free.
Storage5.5mm
Quick Jump:
Technical Specifications
Omron B32-1040 technical specifications.
General
| Color | Blue |
| Height | 4mm |
| Illumination Type | Non-Illuminated |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | B32 |
| Shape | Square |
| Size | 5.5mm |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron B32-1040 Datasheet
Download the complete datasheet for Omron B32-1040 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

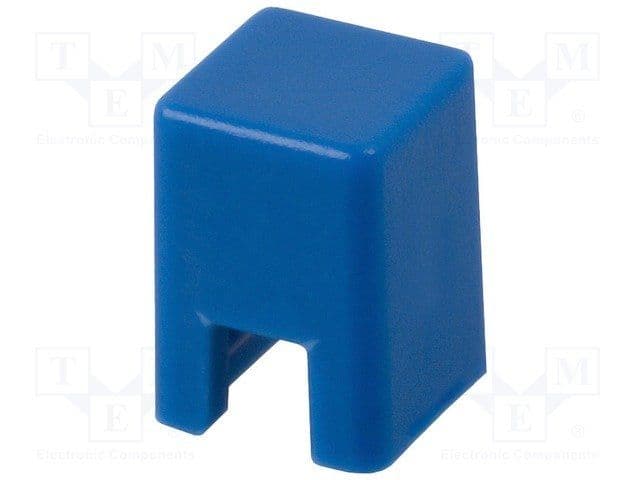

Product Images
