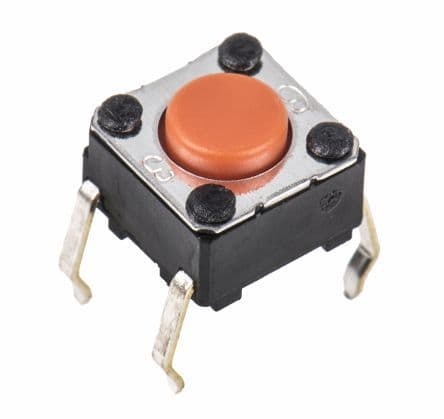

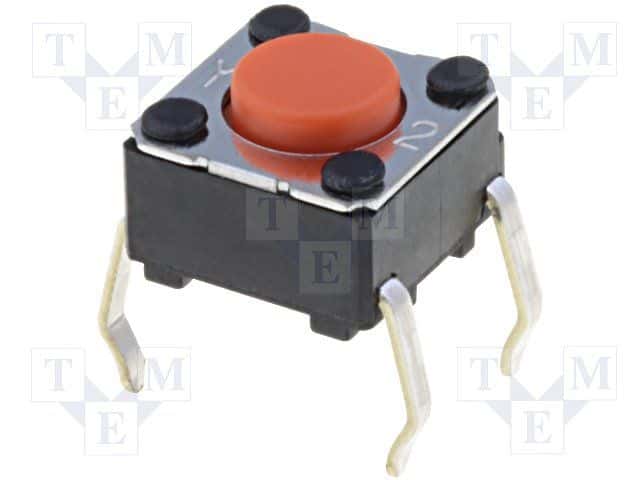

Tactile Switch, 24VDC, 50mA, 2.55N, Through Hole, SPST

Omron

B3F-1005

Name: B3F-1005 Omron
Brand: Omron
SKU: B3F-1005

Tactile Switch, 24VDC, 50mA, 2.55N, Through Hole, SPST

Through-hole tactile switch featuring a 24V DC voltage rating and 50mA current rating. This non-illuminated switch offers a 2.55N operating force and 0.25mm travel. Constructed with gold and silver contact materials, it boasts electrical and mechanical life ratings of 300,000 and 100,000 cycles respectively. The orange standard actuator extends 0.9mm, and the switch is RoHS compliant.

Current Rating50mA

MountingThrough Hole

Quick Jump:

Technical Specifications

Omron B3F-1005 technical specifications.

General

Actuator Color	Orange
Actuator Length	0.9mm
Actuator Type	Standard
Contact Current Rating	50mA
Contact Material	Gold, Silver
Contact Plating	Silver, Gold
Current Rating	50mA
Depth	6mm
Electrical Life	300000Cycles
Height	4.3mm
Illumination Type	Non-Illuminated, Illuminated
Lead Free	Lead Free
Length	6mm
Max Current Rating	50mA
Max Operating Temperature	70°C
Mechanical Life	100000Cycles
Min Operating Temperature	-25°C
Max Voltage Rating (DC)	24V
Mount	Through Hole
Number of Poles	1
Number of Positions	2
Operating Force	2.55N
Orientation	Straight
Package Quantity	100
Packaging	Bulk
Ratings	IP00
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	B3F
Switch Function	Off-Mom
Switch Travel	0.25mm
Termination	PC Pins
Throw Configuration	SPST
DC Rated Voltage	24V
Weight	0.25g
Width	6mm
