Through-hole tactile switch featuring a 0.98N operating force and 0.25mm switch travel. This non-illuminated component offers a 24V DC voltage rating and 50mA current rating with gold-plated contacts for reliable performance. Designed for straight orientation with PC pin termination, it boasts a mechanical and electrical life of 1,000,000 cycles. Operating within a -25°C to 70°C temperature range, this RoHS compliant switch is suitable for various electronic applications.
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron B3F-1150 technical specifications.
General
Actuator Color
Grey
Actuator Length
3mm
Actuator Type
PLUNGER
Color
Grey
Contact Current Rating
50mA
Contact Material
Gold, Silver
Contact Plating
Gold
Current Rating
50mA
Depth
6mm
Electrical Life
1000000Cycles
Height
7.3mm
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Length
6mm
Max Current Rating
50mA
Max Operating Temperature
70°C
Max Voltage Rating (DC)
24V
Mechanical Life
1000000Cycles
Min Operating Temperature
-25°C
Mount
Through Hole
Number of Poles
1
Number of Positions
2
Operating Force
0.98N
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Ratings
IP00
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
B3F
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
24V
Weight
0.25g
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Omron B3F-1150 Datasheet
Download the complete datasheet for Omron B3F-1150 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

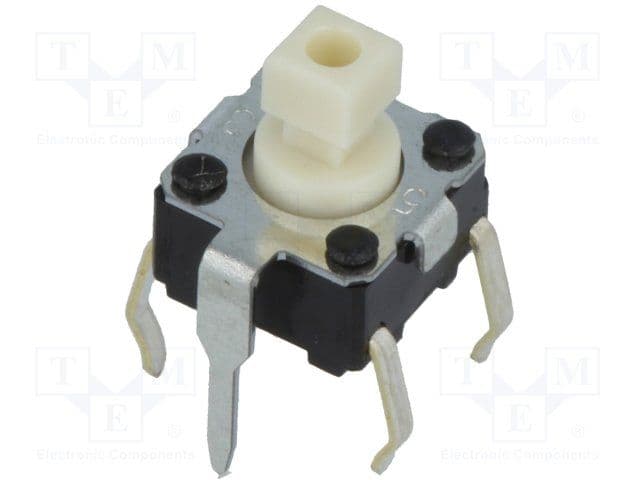

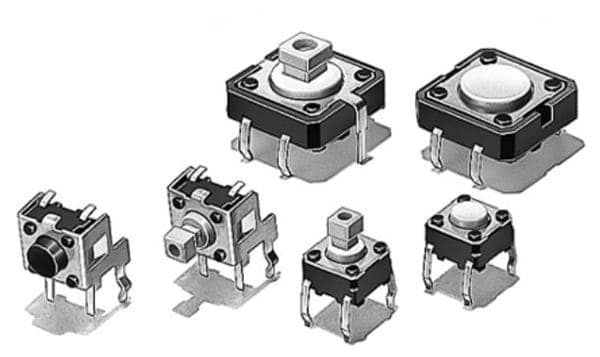

Product Images
