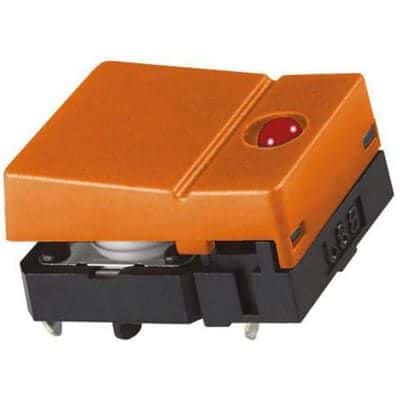

Illuminated pushbutton switch featuring a straight, through-hole mount with PC pin termination. Offers a 1.27N operating force and a 50mA contact current rating at 24V DC. Includes an orange square actuator and red LED illumination. Rated for 3,000,000 electrical and mechanical cycles, with a temperature range of -25°C to 70°C.
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron B3J-2200 technical specifications.
General
Actuator Color
Orange
Actuator Length
6.8mm
Actuator Type
Square, Button
Contact Current Rating
50mA
Contact Plating
Silver
Current Rating
50mA
Electrical Life
3000000Cycles
Illumination Color
Red
Illumination Type
LED, Illuminated
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
24V
Mechanical Life
3000000Cycles
Mount
Through Hole
Operating Force
1.27N
Orientation
Straight
Package Quantity
300
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
B3J
Switch Function
Off-Mom
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
24V
Weight
1.7g
Compliance
RoHS
Compliant
Datasheet
Omron B3J-2200 Datasheet
Download the complete datasheet for Omron B3J-2200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
