Illuminated tactile switch featuring a black, square button actuator with a 6.8mm length. This SPST, Off-Mom switch offers a 50mA contact current rating with silver plating and a 24V DC voltage rating. Designed for through-hole mounting with PC pin termination, it boasts a mechanical and electrical life of 3 million cycles. Operating force is 1.27N, with an operating temperature range of -25°C to 70°C, and includes a green LED illumination.
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron B3J-4100 technical specifications.
General
Actuator Color
Black
Actuator Length
6.8mm
Actuator Type
Square, Button
Contact Current Rating
50mA
Contact Plating
Silver
Current Rating
50mA
Electrical Life
3000000Cycles
Illumination Color
Green
Illumination Type
LED, Illuminated
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
24V
Mechanical Life
3000000Cycles
Mount
Through Hole
Operating Force
1.27N
Orientation
Straight
Package Quantity
300
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
B3J
Switch Function
Off-Mom
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
24V
Weight
1.7g
Compliance
RoHS
Compliant
Datasheet
Omron B3J-4100 Datasheet
Download the complete datasheet for Omron B3J-4100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

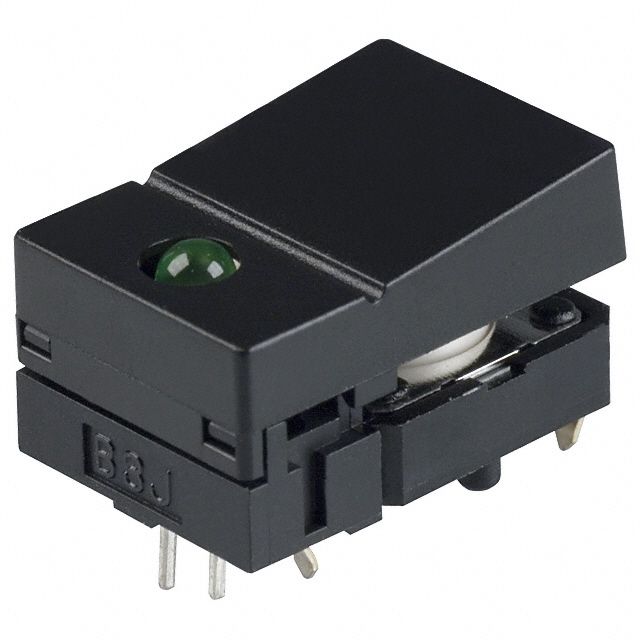

Product Images
