SMD tactile switch featuring a beige, standard actuator and a straight orientation. This SPST, Off-Mom switch offers a 50mA contact current rating at 24V DC, with gold and silver contact materials. Designed for surface mounting, it boasts a 0.25mm switch travel and a mechanical and electrical life of 50,000 cycles. The component is IP67 rated, waterproof, and dust-tight, operating within a -20°C to 70°C temperature range.
PackageSMD/SMT
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron B3SN-3112 technical specifications.
General
Actuator Color
Beige
Actuator Type
Standard
Package/Case
SMD/SMT
Contact Current Rating
50mA
Contact Material
Gold, Silver
Contact Plating
Silver, Gold
Current Rating
50mA
Depth
7mm
Electrical Life
50000Cycles
Height
3.1mm
Illumination Type
Non-Illuminated, Illuminated
Length
6.5mm
Max Current Rating
50mA
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
24V
Mechanical Life
50000Cycles
Mount
Surface Mount
Number of Poles
1
Operating Force
1.57N
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
B3SN
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
SMD/SMT
Throw Configuration
SPST
DC Rated Voltage
24V
Weight
0.2g
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Omron B3SN-3112 Datasheet
Download the complete datasheet for Omron B3SN-3112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

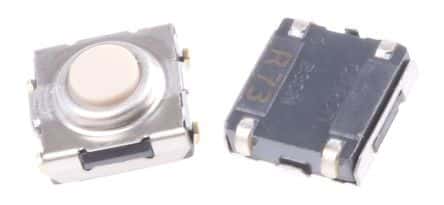

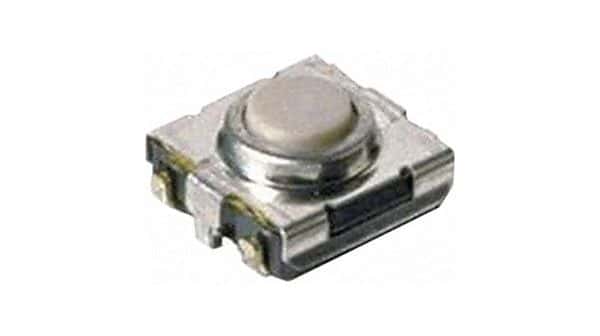

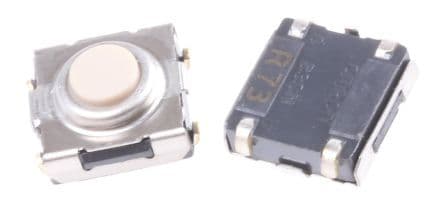

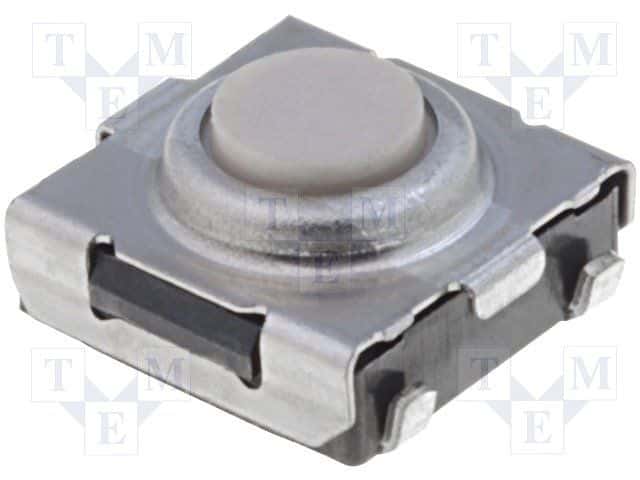

Product Images
