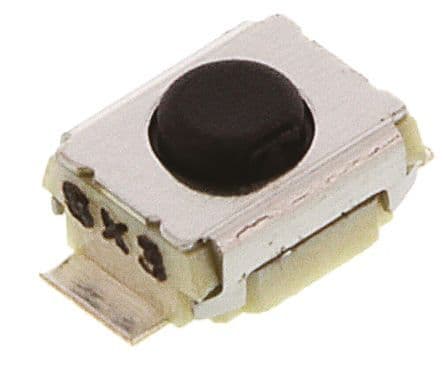

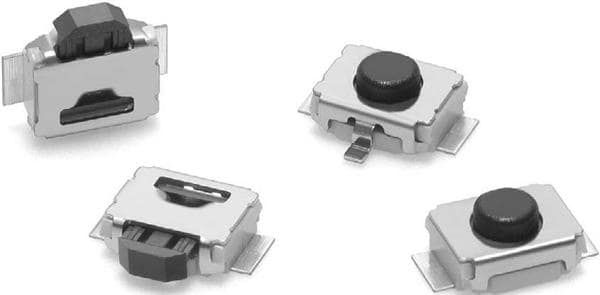

Surface mount tactile switch with a 4mm x 3mm footprint and 1.2mm height. Features a top-actuated, round button with a 1.5N operating force and 0.4mm actuator travel. Rated for 50mA at 12VDC, offering 200,000 electrical and mechanical life cycles. This SPST, Off-Mom switch is dust-proof (IP40) and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron B3U-1000P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 0.4mm |
| Actuator Type | Standard |
| Color | Silver |
| Contact Current Rating | 50mA |
| Contact Material | Silver |
| Current Rating | 50mA |
| Depth | 2.5mm |
| Electrical Life | 200000Cycles |
| Height | 1.2mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Current Rating | 50mA |
| Max Operating Temperature | 70°C |
| Mechanical Life | 200000Cycles |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (DC) | 12V |
| Mount | Surface Mount |
| Number of Positions | 2 |
| Operating Force | 1.5N |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | Dust Proof, IP40 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | B3U |
| Switch Function | Off-Mom |
| Switch Travel | 0.15mm |
| Termination | SMD/SMT |
| Throw Configuration | SPST |
| DC Rated Voltage | 12V |
| Weight | 0.000776oz |
| Width | 3mm |
| RoHS | Compliant |
