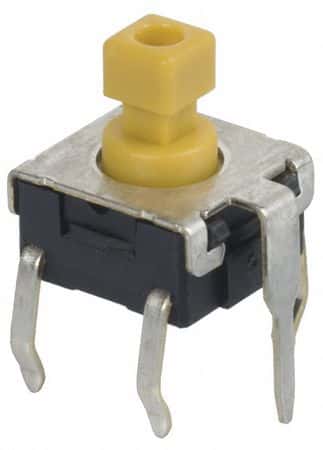

Sealed, through-hole tactile switch featuring a yellow plunger actuator with a 3.9mm length. This SPST switch offers a 50mA contact current rating with silver contacts and plating, and a 24V DC voltage rating. Designed for PCB mounting, it boasts IP67, waterproof, and dust-tight ratings, with a mechanical life of 300,000 cycles. Operating force is 2.26N, and switch travel is 0.25mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron B3W-1152 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Color | Yellow |
| Actuator Length | 3.9mm |
| Actuator Type | PLUNGER |
| Contact Current Rating | 50mA |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 50mA |
| Height | 11.6mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 300000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Sealed, Through Hole, PCB |
| Number of Poles | 1 |
| Operating Force | 2.26N |
| Orientation | Straight |
| Package Quantity | 1500 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | B3W |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Termination | PC Pin |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Weight | 0.3g |
| Width | 6mm |
| RoHS | Compliant |
