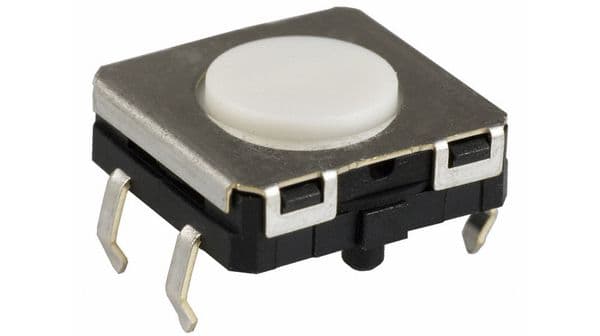

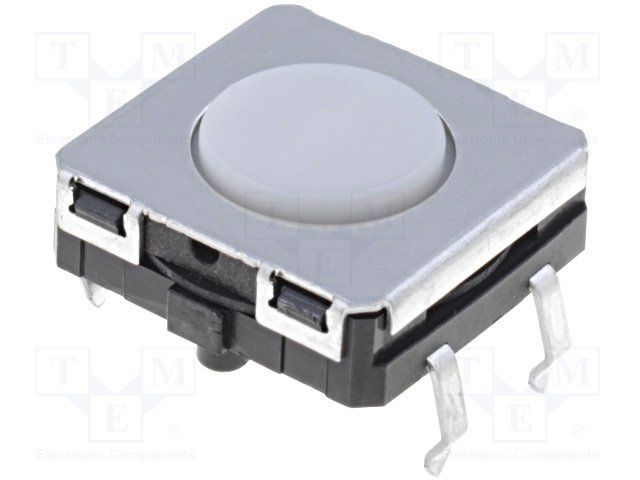

Tactile switch featuring a flat, round white button with PC pin termination for through-hole mounting. This SPST, Off-Mom switch offers a 50mA contact current rating at 24VDC and a mechanical life of 3 million cycles. It operates with a 1.96N force and has a 0.3mm travel. Rated IP67 for waterproof and dust-tight applications, this non-illuminated or illuminated switch is RoHS compliant.
Current Rating50mA
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Omron B3W-4000 technical specifications.
General
| Actuator Color | White |
| Actuator Length | 0.75mm |
| Actuator Type | Standard |
| Contact Current Rating | 50mA |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 50mA |
| Depth | 12mm |
| Height | 7.8mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 12mm |
| Max Current Rating | 50mA |
| Max Operating Temperature | 70°C |
| Mechanical Life | 3000000Cycles |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (DC) | 24V |
| Mount | Through Hole, PCB |
| Number of Poles | 1 |
| Operating Force | 1.96N |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | B3W |
| Switch Function | Off-Mom |
| Switch Travel | 0.3mm |
| Termination | PC Pins |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Weight | 1g |
| Width | 12mm |
Compliance
| RoHS | Compliant |
