Technical Specifications
Omron B3W-4050S technical specifications.
General
| Actuator Length | 3mm |
| Current Rating | 50mA |
| Electrical Life | 3000000Cycles |
| Illumination Type | Non-Illuminated |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 3000000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Operating Force | 1.96N |
| Orientation | Straight |
| Package Quantity | 504 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | B3W |
| Switch Function | Off-Mom |
| Switch Travel | 0.3mm |
| Termination | PC Pin |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Weight | 1g |
Compliance
| RoHS | Compliant |
Datasheet
Omron B3W-4050S Datasheet
Download the complete datasheet for Omron B3W-4050S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

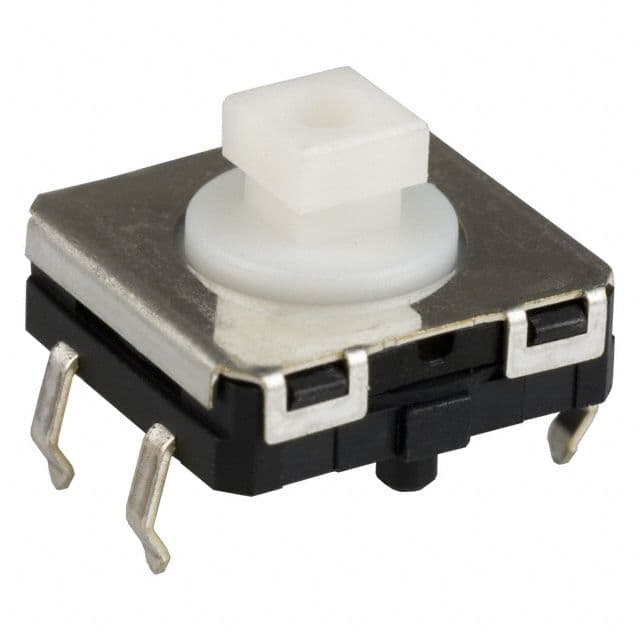

Product Images
