SPST-NO tactile switch with a 0.05A, 24V DC rating. Features a standard, straight, yellow actuator with 0.75mm length and 0.3mm travel. Through-hole mount with PC pin termination and silver contacts. Rated IP67 for waterproof and dust-tight operation, with a mechanical life of 3,000,000 cycles. Operating force is 3.43N, and it operates within a temperature range of -25°C to 70°C.
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron B3W-4105 technical specifications.
General
| Actuator Color | Yellow |
| Actuator Length | 0.75mm |
| Actuator Type | Standard |
| Color | White |
| Contact Material | Silver |
| Current Rating | 50mA |
| Height | 7.8mm |
| Illumination Type | Non-Illuminated |
| Lead Free | Lead Free |
| Length | 12mm |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 3000000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Operating Force | 3.43N |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | B3W |
| Switch Function | Off-Mom |
| Switch Travel | 0.3mm |
| Termination | PC Pin |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Weight | 0.035274oz |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron B3W-4105 Datasheet
Download the complete datasheet for Omron B3W-4105 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

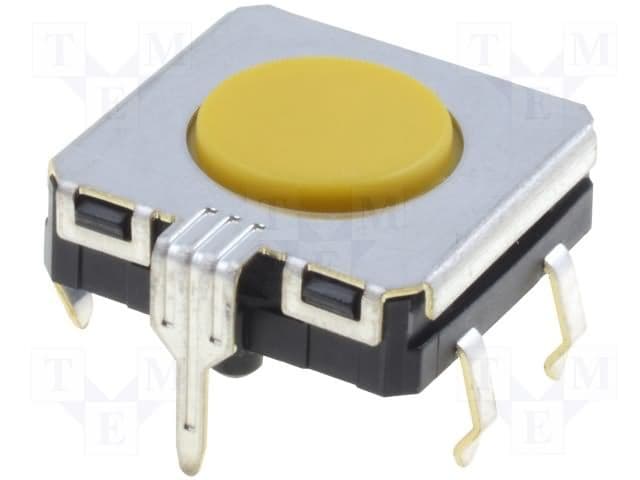

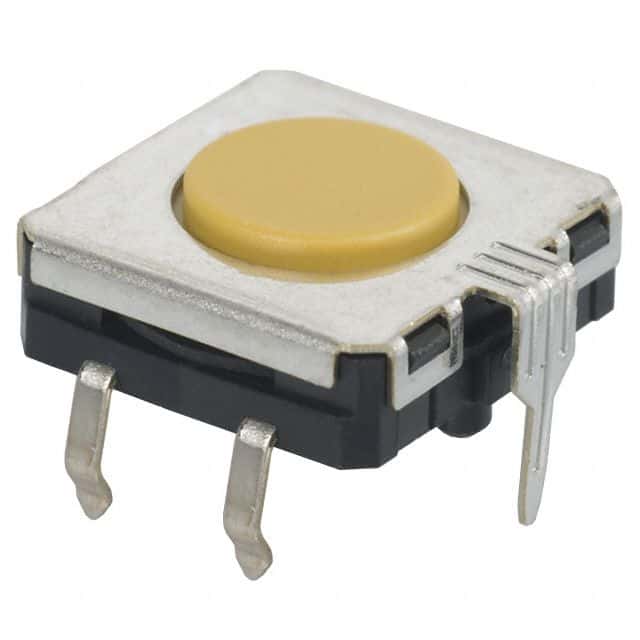

Product Images
