Illuminated tactile switch featuring a green actuator and LED illumination. This through-hole mount component offers a 1.57N operating force and 0.25mm switch travel. Rated for 24V DC and 50mA, it boasts a silver contact material and plating, with an electrical and mechanical life of 1,000,000 cycles. Designed for straight orientation with PC pin termination, it operates within a temperature range of -25°C to 70°C.
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron B3W-9000-G1G technical specifications.
General
Actuator Color
Green
Actuator Length
5.2mm
Color
Green
Contact Current Rating
50mA
Contact Material
Silver
Contact Plating
Silver
Current Rating
50mA
Electrical Life
1000000Cycles
Height
11mm
Illumination Color
Green
Illumination Type
LED, Illuminated
Length
10mm
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
24V
Mechanical Life
1000000Cycles
Mount
Through Hole
Number of Poles
1
Operating Force
1.57N
Orientation
Straight
Package Quantity
300
Packaging
Bulk
Ratings
IP00
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
B3W-9
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
24V
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Omron B3W-9000-G1G Datasheet
Download the complete datasheet for Omron B3W-9000-G1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

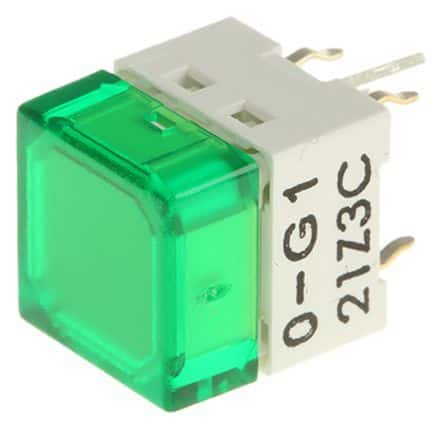

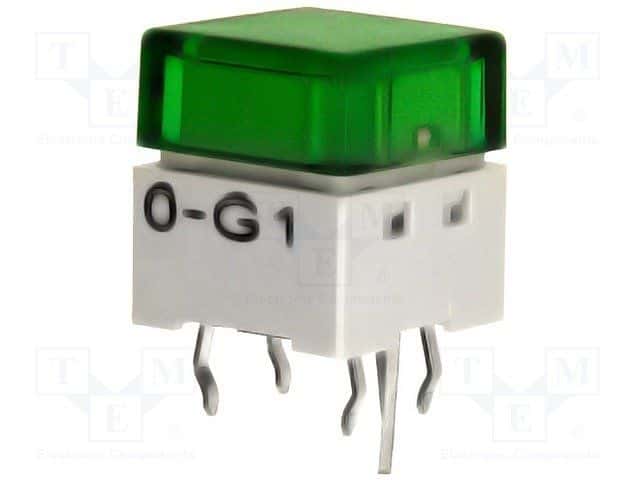

Product Images
