Illuminated tactile switch featuring a red LED and clear actuator. This through-hole mount component offers a 1.57N operating force, 0.25mm travel, and a 1 million cycle mechanical life. It is rated for 50mA at 24V DC, with silver contacts and silver plating. Operating temperature range is -25°C to 70°C.
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron B3W-9000-R1C technical specifications.
General
Actuator Color
Clear
Contact Material
Silver
Contact Plating
Silver
Current Rating
50mA
Height
11mm
Illumination Color
Red
Illumination Type
LED, Illuminated
Length
10mm
Max Operating Temperature
70°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
24V
Mount
Through Hole
Number of Poles
1
Operating Force
1.57N
Orientation
Straight
Package Quantity
300
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
B3W-9
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
24V
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Omron B3W-9000-R1C Datasheet
Download the complete datasheet for Omron B3W-9000-R1C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

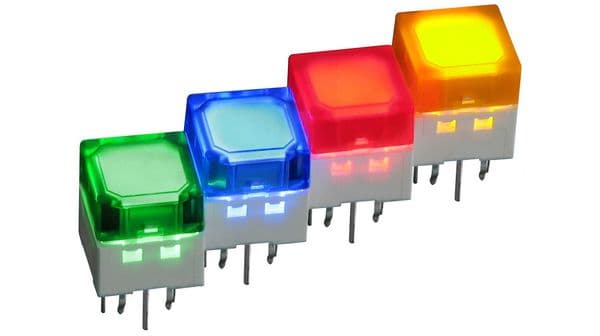

Product Images
