Illuminated tactile switch featuring a straight, through-hole mount with PC pin termination. Offers a 1.57N operating force and 0.25mm switch travel. Rated for 24V DC and 50mA, with silver contacts and plating. Includes red LED illumination and a white actuator. Designed for 1,000,000 electrical and mechanical cycles, with an operating temperature range of -25°C to 70°C.
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron B3W-9000-R1N technical specifications.
General
Actuator Color
White
Actuator Length
5.2mm
Color
White
Contact Current Rating
50mA
Contact Material
Silver
Contact Plating
Silver
Current Rating
50mA
Electrical Life
1000000Cycles
Illumination Color
Red
Illumination Type
LED, Illuminated
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
24V
Mechanical Life
1000000Cycles
Mount
Through Hole
Operating Force
1.57N
Orientation
Straight
Package Quantity
300
Packaging
Tray
Radiation Hardening
No
Ratings
IP00
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
B3W-9
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
24V
Compliance
RoHS
Compliant
Datasheet
Omron B3W-9000-R1N Datasheet
Download the complete datasheet for Omron B3W-9000-R1N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

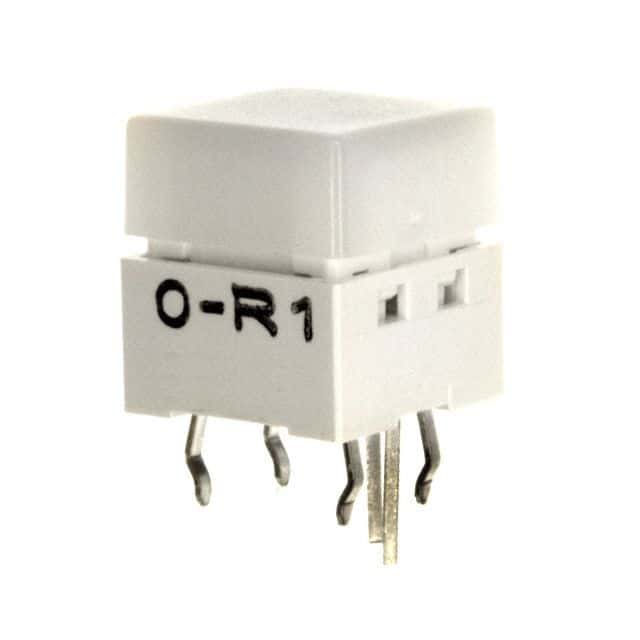

Product Images
