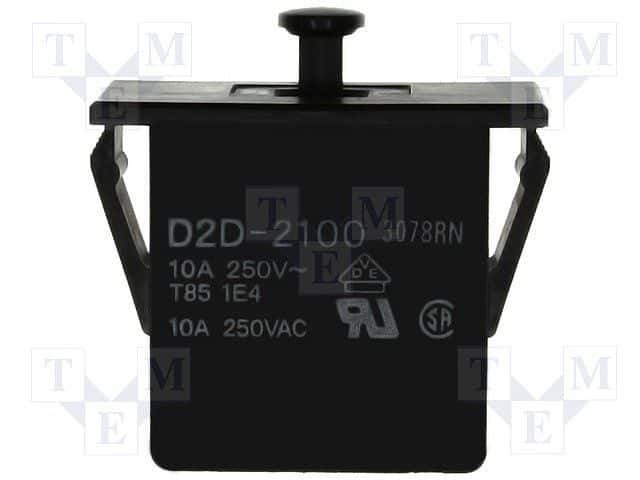

SPDT safety interlock switch featuring a plunger actuator and quick connect/solder termination. Rated for 250V AC and 10A continuous current, with a maximum current rating of 16A. Offers 100,000 electrical cycles and 10,000,000 mechanical cycles. Operating temperature range from -25°C to 85°C, with IP40 protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D2D-2100 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron D2D-2100 technical specifications.
| Actuator Type | PLUNGER |
| Color | Black |
| Contact Current Rating | 16A |
| Contact Material | Silver |
| Current Rating | 10A |
| Electrical Life | 100000Cycles |
| Lead Free | Lead Free |
| Max Current Rating | 16A |
| Max Operating Temperature | 85°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Panel, Snap in |
| Operating Force | 300gf |
| Package Quantity | 50 |
| Packaging | Tray |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D2D |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| Weight | 0.493835oz |
| RoHS | Compliant |
