This Omron D2D-3104 switch is a 16A snap action type with a DPST/DPDT configuration, rated for 250V AC. It has a minimum operating temperature of -25°C and a maximum operating temperature of 85°C. The switch is lead free and RoHS compliant, with a mechanical life of 10,000,000 cycles and an electrical life of 100,000 cycles.
Current Rating16A
MountingSnap in, Panel
Quick Jump:
Technical Specifications
Omron D2D-3104 technical specifications.
General
| Actuator Type | PLUNGER |
| Color | Black |
| Contact Current Rating | 16A |
| Contact Material | Silver |
| Current Rating | 16A |
| Electrical Life | 100000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Snap in, Panel |
| Operating Force | 600gf |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D2D |
| Switch Function | Off-Mom |
| Termination | Quick Connect |
| Throw Configuration | DPST, DPDT |
| Voltage Rating (AC) | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Omron D2D-3104 Datasheet
Download the complete datasheet for Omron D2D-3104 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

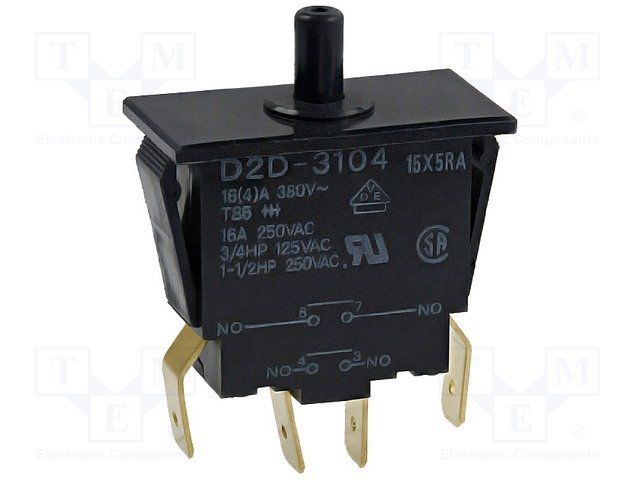

Product Images
