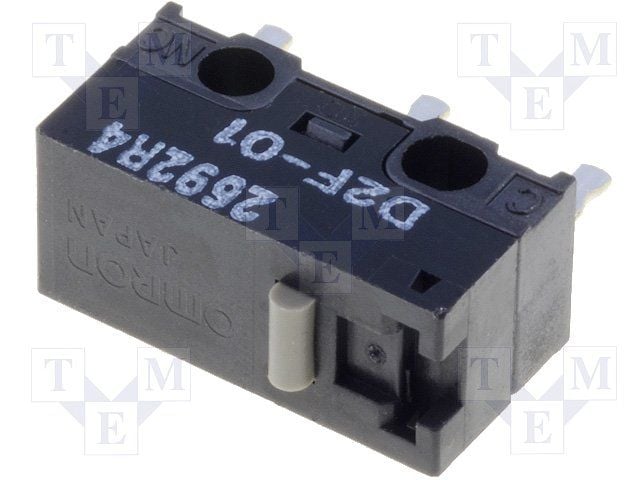

SPDT microswitch with a pin plunger actuator, featuring gold-plated contacts for 100mA at 125VAC/30VDC. This straight-orientation switch offers a mechanical life of 1,000,000 cycles and an electrical life of 100,000 cycles. Mountable via through-hole, PCB, or screw, it operates within a temperature range of -25°C to 65°C and is RoHS compliant. Approvals include UL and CSA.
Current Rating100mA
MountingThrough Hole, PCB, Screw
Quick Jump:

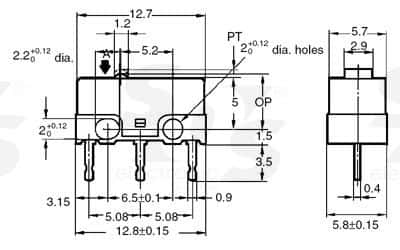

Technical Specifications
Omron D2F-01 technical specifications.
General
Actuator Type
PIN PLUNGER
Approvals
UL, CSA
Contact Current Rating
100mA
Contact Material
Gold
Contact Plating
Gold
Current Rating
100mA
Depth
5.8mm
Electrical Life
100000Cycles
Lead Free
Lead Free
Length
12.8mm
Max Current Rating
100mA
Max Operating Temperature
65°C
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
30V
Mechanical Life
1000000Cycles
Mount
Through Hole, PCB, Screw
Number of Poles
1
Number of Positions
2
Operating Force
1.47N
Orientation
Straight
Package Quantity
500
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
D2F
Switch Function
On-Mom
Termination
PC Pins
Throw Configuration
SPDT
DC Rated Voltage
30V
Weight
0.017637oz
Compliance
RoHS
Compliant
Datasheet
Omron D2F-01 Datasheet
Download the complete datasheet for Omron D2F-01 to view detailed technical specifications.
