Current Rating100mA
MountingPanel, Through Hole, Screw
Quick Jump:
Technical Specifications
Omron D2F-01-A1 technical specifications.
General
Contact Material
Gold
Current Rating
100mA
Electrical Life
100000Cycles
Lead Free
Lead Free
Max Operating Temperature
65°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
30V
Mount
Panel, Through Hole, Screw
Operating Force
1.47N
Orientation
Right Angle
Package Quantity
150
Packaging
Tray
Radiation Hardening
No
Ratings
IP40
RoHS Compliant
Yes
Series
D2F
Switch Function
On-Mom
Termination
PC Pin
Throw Configuration
SPDT
DC Rated Voltage
30V
Weight
0.5g
Compliance
RoHS
Compliant
Datasheet
Omron D2F-01-A1 Datasheet
Download the complete datasheet for Omron D2F-01-A1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

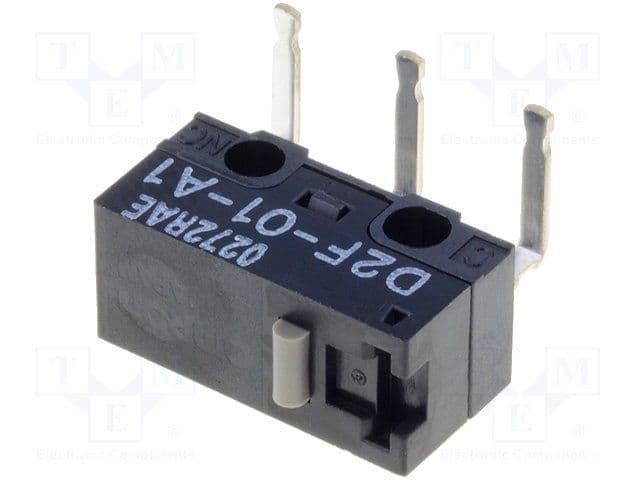

Product Images
