SPDT snap action switch featuring a hinge lever actuator. Offers 100mA contact current rating at 30VDC, with gold-plated contacts for reliable performance. Designed with PC pin termination for PCB mounting, and supports panel, through hole, and screw mount options. Operating force is 0.25N, with electrical and mechanical life ratings of 100,000 and 1,000,000 cycles respectively. Operating temperature range is -25°C to 65°C, and the switch is RoHS compliant.
Current Rating100mA
MountingPanel, Through Hole, PCB, Screw
Quick Jump:
Technical Specifications
Omron D2F-01FL technical specifications.
General
Actuator Material
Stainless Steel
Contact Current Rating
100mA
Contact Material
Gold
Contact Plating
Gold
Current Rating
100mA
Depth
5.8mm
Electrical Life
100000Cycles
Lead Free
Lead Free
Length
13.95mm
Max Current Rating
100mA
Max Operating Temperature
65°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
30V
Mount
Panel, Through Hole, PCB, Screw
Number of Poles
1
Number of Positions
2
Operating Force
0.25N
Orientation
Straight
Package Quantity
500
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
D2F
Switch Function
On-Mom
Termination
PC Pins
Throw Configuration
SPDT
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron D2F-01FL Datasheet
Download the complete datasheet for Omron D2F-01FL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

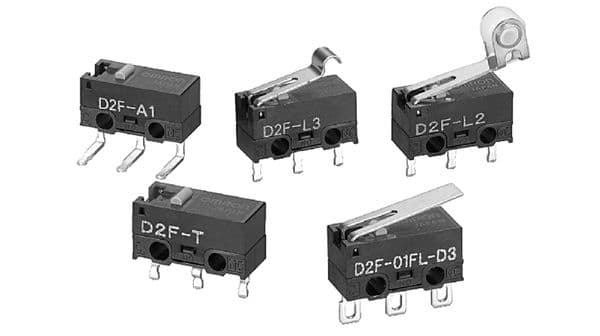

Product Images
