Current Rating100mA
MountingChassis Mount, Screw, Solder
Quick Jump:
Technical Specifications
Omron D2F-01FL2-D technical specifications.
General
Contact Material
Gold
Current Rating
100mA
Electrical Life
100000Cycles
Lead Free
Lead Free
Max Operating Temperature
65°C
Max Voltage Rating (DC)
30V
Mechanical Life
1000000Cycles
Min Operating Temperature
-25°C
Mount
Chassis Mount, Screw, Solder
Operating Force
0.39N
Orientation
Straight
Package Quantity
150
Packaging
Tray
Radiation Hardening
No
Ratings
IP40
RoHS Compliant
Yes
Series
D2F
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron D2F-01FL2-D Datasheet
Download the complete datasheet for Omron D2F-01FL2-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

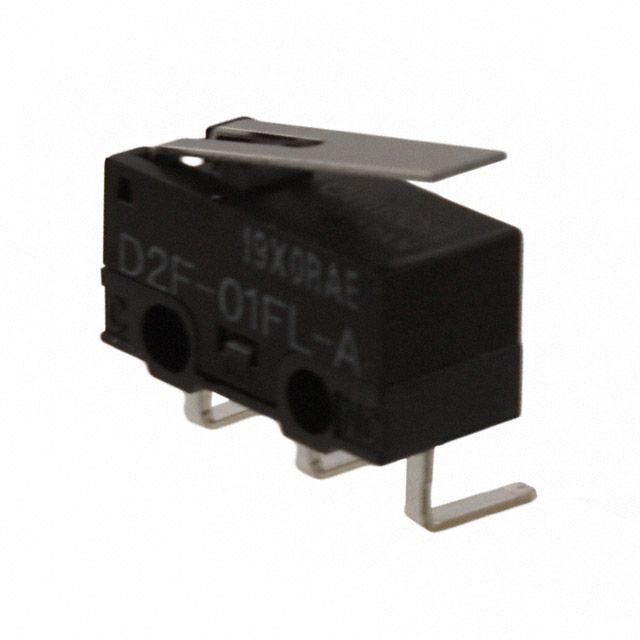

Product Images
