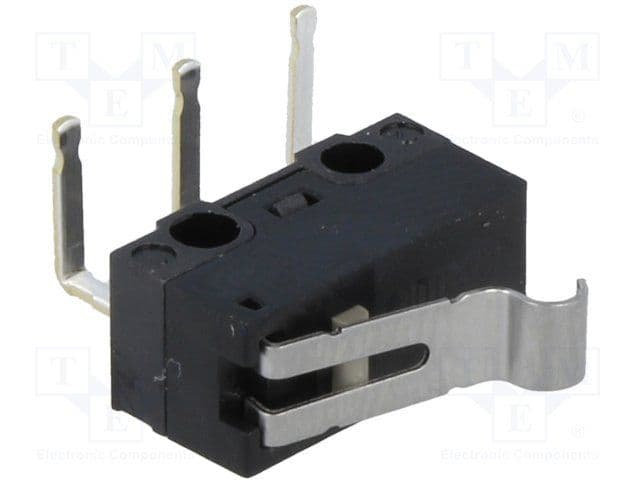

SPDT snap-action switch with simulated roller lever, featuring gold contacts for 100mA at 30VDC. Offers 0.39N operating force, 0.02 inch overtravel, and 0.018 inch differential travel. Designed for through-hole mounting with PC pin termination and right-angle orientation. Rated for 1,000,000 mechanical cycles and 100,000 electrical cycles, with an IP40 rating and RoHS compliance. Operates within a temperature range of -25°C to 65°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D2F-01FL3-A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Material | Gold |
| Current Rating | 100mA |
| Differential Travel | 0.018inch |
| Electrical Life | 100000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 65°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, Screw |
| Operating Force | 0.39N |
| Operating Position | 0.335inch |
| Orientation | Right Angle |
| Overtravel | 0.02inch |
| Package Quantity | 450 |
| Packaging | Tray |
| Radiation Hardening | No |
| Ratings | IP40 |
| RoHS Compliant | Yes |
| Series | D2F |
| Switch Function | On-Mom |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| DC Rated Voltage | 30V |
| RoHS | Compliant |
