SPDT snap action switch with a stainless steel hinge lever actuator. Features gold-plated contacts for 100mA at 30VDC, offering 100,000 electrical cycles and 1,000,000 mechanical cycles. Mounts via through-hole PCB termination with straight PC pins. Operating force is 0.78N, with an operating temperature range of -25°C to 65°C. IP40 rated and RoHS compliant.
Current Rating100mA
MountingThrough Hole, PCB, Screw
Quick Jump:
Technical Specifications
Omron D2F-01L technical specifications.
General
| Actuator Material | Stainless Steel |
| Actuator Type | HINGE LEVER |
| Approvals | UL, CSA |
| Contact Current Rating | 100mA |
| Contact Material | Gold |
| Contact Plating | Gold |
| Current Rating | 100mA |
| Depth | 5.8mm |
| Electrical Life | 100000Cycles |
| Lead Free | Lead Free |
| Length | 13.95mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 1000000Cycles |
| Mount | Through Hole, PCB, Screw |
| Number of Poles | 1 |
| Operating Force | 0.78N |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP40 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | D2F |
| Switch Function | On-Mom |
| Termination | PC Pins |
| Throw Configuration | SPDT |
| DC Rated Voltage | 30V |
| Weight | 0.017637oz |
Compliance
| RoHS | Compliant |
Datasheet
Omron D2F-01L Datasheet
Download the complete datasheet for Omron D2F-01L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

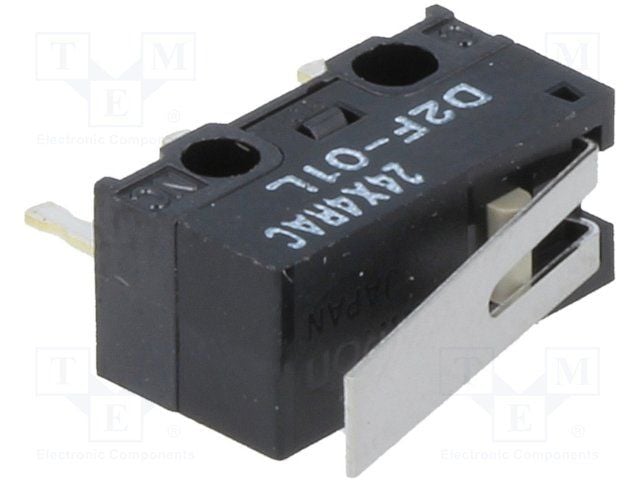

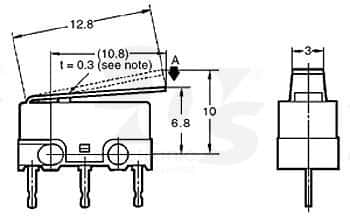

Product Images
