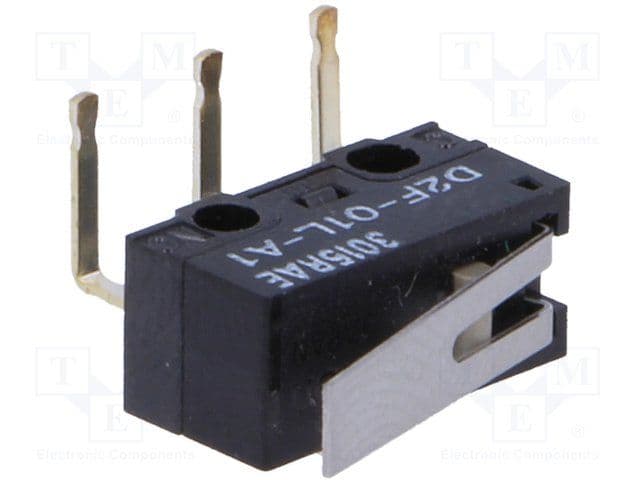

The Omron D2F-01L-A1 is a 30V SPDT on-momentary switch with a maximum operating temperature of 65°C and a minimum operating temperature of -25°C. It features a through hole, screw mount and is rated for 100,000 electrical cycles and 1,000,000 mechanical cycles. The switch is RoHS compliant and has a contact material of gold. It is rated for 30V DC and has an operating force of 0.78N.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D2F-01L-A1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron D2F-01L-A1 technical specifications.
| Contact Material | Gold |
| Electrical Life | 100000Cycles |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 1000000Cycles |
| Mount | Through Hole, Screw |
| Operating Force | 0.78N |
| Orientation | Right Angle |
| Package Quantity | 150 |
| Packaging | Tray |
| Radiation Hardening | No |
| Ratings | IP40 |
| RoHS Compliant | Yes |
| Series | D2F |
| Switch Function | On-Mom |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| DC Rated Voltage | 30V |
| RoHS | Compliant |
