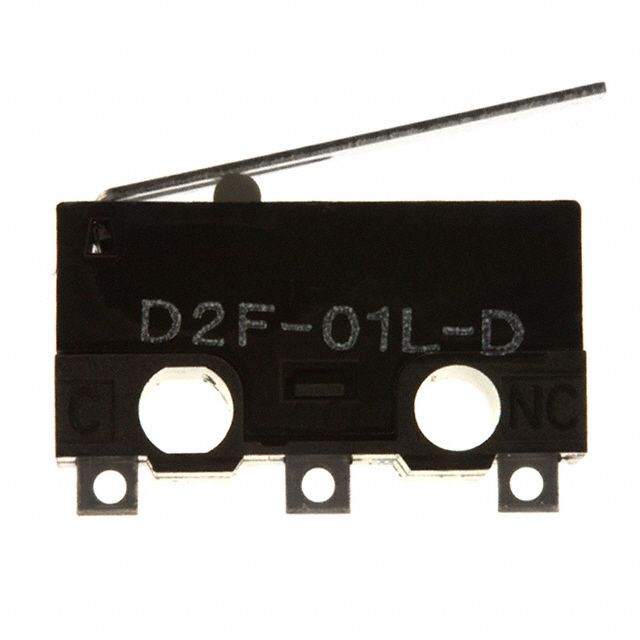

The Omron D2F-01L10 is a basic and snap action switch with a SPDT throw configuration and on-mom switch function. It has a maximum operating temperature of 65°C and a minimum operating temperature of -25°C. The switch is rated for 30V DC and has a mechanical life of 1,000,000 cycles. It also meets the IP40 rating for environmental protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D2F-01L10 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Electrical Life | 100000Cycles |
| Max Operating Temperature | 65°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -25°C |
| Operating Force | 0.5N |
| Package Quantity | 150 |
| Packaging | Bulk |
| Ratings | IP40 |
| Series | D2F |
| Switch Function | On-Mom |
| Throw Configuration | SPDT |
| DC Rated Voltage | 30V |
| RoHS | Compliant |
