Omron
D2F-01L2-A1
Switch Snap Action N.O./N.C. SPDT Hinge Roller Lever 0.1A 30VDC 0.78N Thru-Hole PC Pins
Current Rating100mA
MountingThrough Hole, Screw
Quick Jump:
Technical Specifications
Omron D2F-01L2-A1 technical specifications.
General
Contact Material
Gold
Current Rating
100mA
Differential Travel
0.02inch
Electrical Life
100000Cycles
Max Operating Temperature
65°C
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
30V
Mechanical Life
1000000Cycles
Mount
Through Hole, Screw
Operating Force
0.78N
Operating Position
0.512inch
Orientation
Right Angle
Overtravel
0.022inch
Package Quantity
450
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
RoHS Compliant
Yes
Series
D2F
Switch Function
On-Mom
Termination
PC Pin
Throw Configuration
SPDT
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron D2F-01L2-A1 Datasheet
Download the complete datasheet for Omron D2F-01L2-A1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

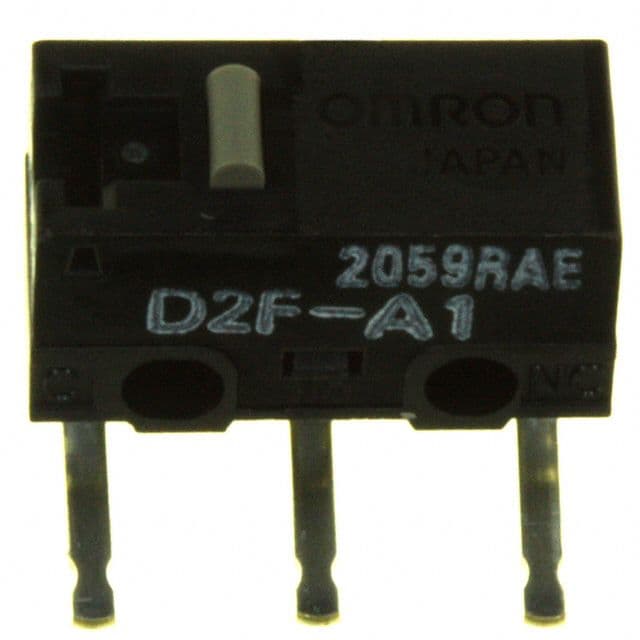

Product Images
