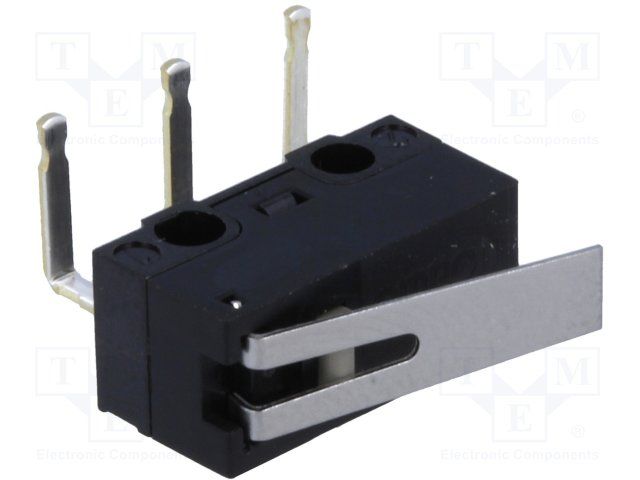

SPDT snap action switch with a 1A, 125VAC rating and 30VDC rating. Features a stainless steel actuator, silver contacts, and PC pin termination for through-hole PCB mounting. Offers a 0.25N operating force, 0.02-inch differential travel, and 0.022-inch overtravel. Rated for 300,000 electrical cycles and 1,000,000 mechanical cycles, with an operating temperature range of -25°C to 65°C. RoHS compliant with IP40 protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D2F-FL-A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Material | Stainless Steel |
| Contact Material | Silver |
| Current Rating | 1A |
| Depth | 14.5mm |
| Differential Travel | 0.02inch |
| Electrical Life | 30000Cycles |
| Lead Free | Lead Free |
| Length | 13.95mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 1000000Cycles |
| Mount | Through Hole, PCB |
| Number of Poles | 1 |
| Operating Force | 0.25N |
| Operating Position | 0.268inch |
| Orientation | Right Angle |
| Overtravel | 0.022inch |
| Package Quantity | 450 |
| Packaging | Bulk |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D2F |
| Switch Function | On-Mom |
| Termination | PC Pins |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| RoHS | Compliant |
