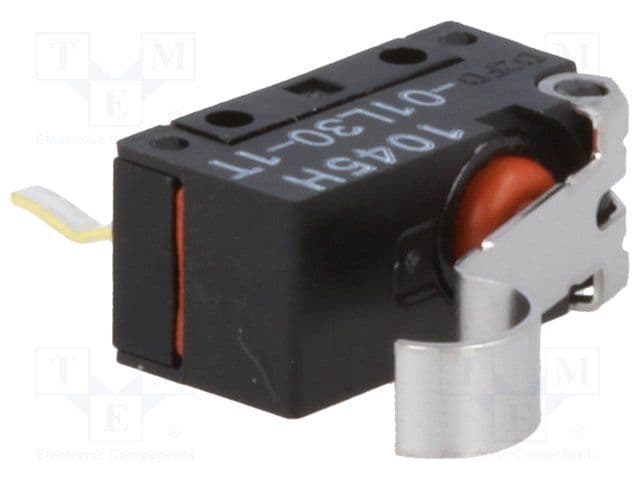

SPDT snap-action switch featuring a simulated roller lever actuator. Offers 100mA contact current rating at 125VAC and 30VDC, with gold-plated contacts for enhanced conductivity. Rated for 100,000 electrical cycles and 300,000 mechanical cycles, this through-hole mounted component operates within a temperature range of -20°C to 70°C. IP60 rated for dust tightness and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D2FD-01L30-1T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | SIMULATED ROLLER LEVER |
| Package/Case | 100 |
| Contact Current Rating | 100mA |
| Contact Material | Gold, Silver |
| Contact Plating | Gold |
| Current Rating | 100mA |
| Electrical Life | 100000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Mechanical Life | 300000Cycles |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operating Force | 66gf |
| Package Quantity | 750 |
| Packaging | Bulk |
| Ratings | IP60, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D2FD |
| Switch Function | On-Mom |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| RoHS | Compliant |
