SPDT microswitch featuring a pin plunger actuator for right-angle mounting via PC pin termination. Rated for 2A at 125VAC and 12VDC, with a contact current rating of 2A and contact material of gold/silver with gold plating. Offers 100,000 electrical cycles and 1,000,000 mechanical cycles, operating between -40°C and 85°C. This waterproof and dust-tight switch is RoHS compliant and suitable for panel, through hole, or PCB mounting.
Current Rating2A
MountingPanel, Through Hole, PCB
Quick Jump:
Technical Specifications
Omron D2HW-BR201DR technical specifications.
General
| Actuator Type | PLUNGER |
| Contact Current Rating | 2A |
| Contact Material | Gold, Silver |
| Contact Plating | Gold |
| Current Rating | 2A |
| Electrical Life | 100000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 42V |
| Mechanical Life | 1000000Cycles |
| Mount | Panel, Through Hole, PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 0.75N |
| Orientation | Right Angle |
| Package Quantity | 250 |
| Packaging | Tray |
| Ratings | IP67, Waterproof, Dust Tight, IP50 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D2HW |
| Switch Function | On-Mom |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 12V |
| Weight | 0.7g |
Compliance
| RoHS | Compliant |
Datasheet
Omron D2HW-BR201DR Datasheet
Download the complete datasheet for Omron D2HW-BR201DR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

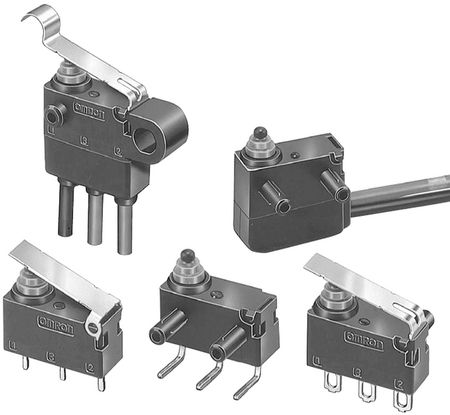

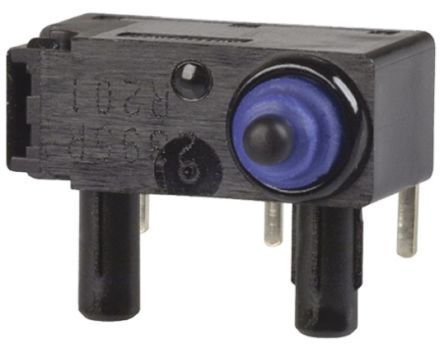

Product Images
