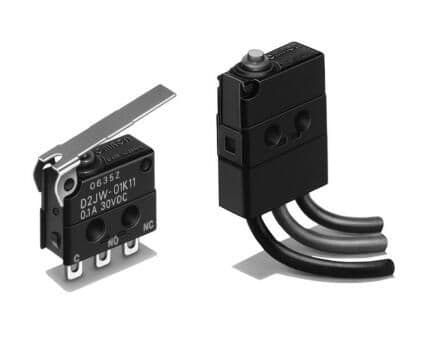

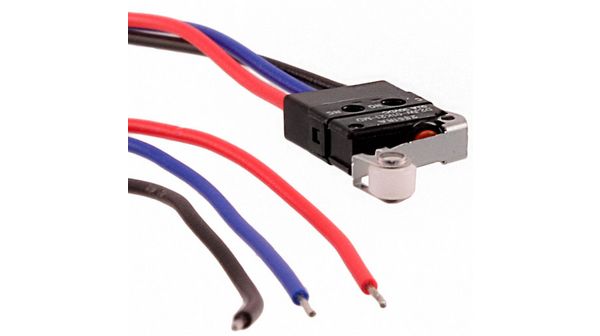

SPDT microswitch featuring a roller lever actuator and wire lead termination. Rated for 100mA at 30V DC, this switch boasts gold contact material for enhanced reliability and offers both electrical and mechanical life cycles of 100,000 and 1,000,000 respectively. Designed for panel, chassis, and surface mounting, it operates within a temperature range of -40°C to 85°C and provides IP67, waterproof, and dust-tight protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D2JW-01K21-MD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | ROLLER LEVER |
| Package/Case | Molded |
| Contact Current Rating | 100mA |
| Contact Material | Gold |
| Current Rating | 100mA |
| Depth | 5.3mm |
| Electrical Life | 100000Cycles |
| Lead Free | Lead Free |
| Length | 17.7mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Panel, Chassis Mount, Surface Mount, Brackets, Screw, Wire |
| Number of Poles | 1 |
| Operating Force | 0.98N |
| Orientation | Straight |
| Package Quantity | 20 |
| Packaging | Tray |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | D2JW |
| Switch Function | On-Mom |
| Termination | Wire Leads |
| Throw Configuration | SPDT |
| DC Rated Voltage | 30V |
| RoHS | Compliant |
