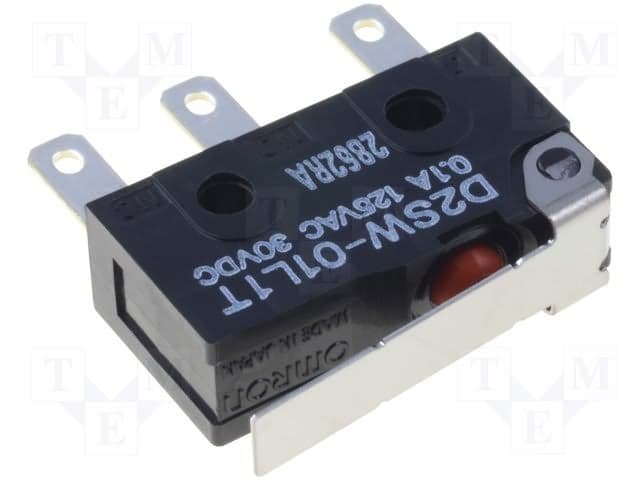

The D2SW-01L1T is a SPDT hinge lever switch with a contact current rating of 100mA and a maximum operating temperature of 85°C. It features gold contacts and a solder mount. The switch is rated for IP67 and is suitable for use in a variety of applications. The operating force is 0.59N, and the termination is via a tab.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D2SW-01L1T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | HINGE LEVER |
| Package/Case | 100 |
| Contact Current Rating | 100mA |
| Contact Material | Gold |
| Contact Plating | Gold |
| Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Solder |
| Operating Force | 0.59N |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Termination | Tab |
| Throw Configuration | SPDT |
| RoHS | Compliant |
