SPDT microswitch featuring a roller lever actuator and solder termination. Rated for 3A at 250VAC and 30VDC, with a contact material of silver. Offers a 200,000-cycle electrical life and 5,000,000-cycle mechanical life. Operating force is 0.59N, with an operating temperature range of -40°C to 85°C. IP67 rated for waterproof and dust-tight protection.
Current Rating3A
MountingScrew, Chassis Mount, Solder
Quick Jump:
Technical Specifications
Omron D2SW-3L2H technical specifications.
General
Actuator Type
ROLLER LEVER
Contact Current Rating
3A
Contact Material
Silver
Contact Plating
Silver
Current Rating
3A
Electrical Life
200000Cycles
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mechanical Life
5000000Cycles
Mount
Screw, Chassis Mount, Solder
Operating Force
0.59N
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight, IP50
Reach SVHC Compliant
Unknown
Series
D2SW
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Weight
2g
Compliance
RoHS
Compliant
Datasheet
Omron D2SW-3L2H Datasheet
Download the complete datasheet for Omron D2SW-3L2H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

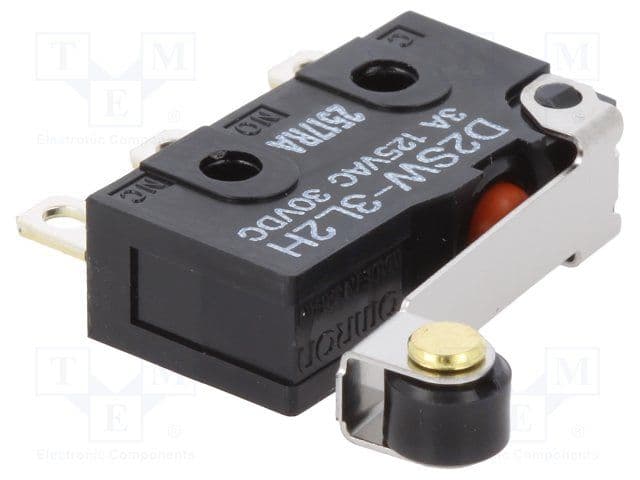

Product Images
