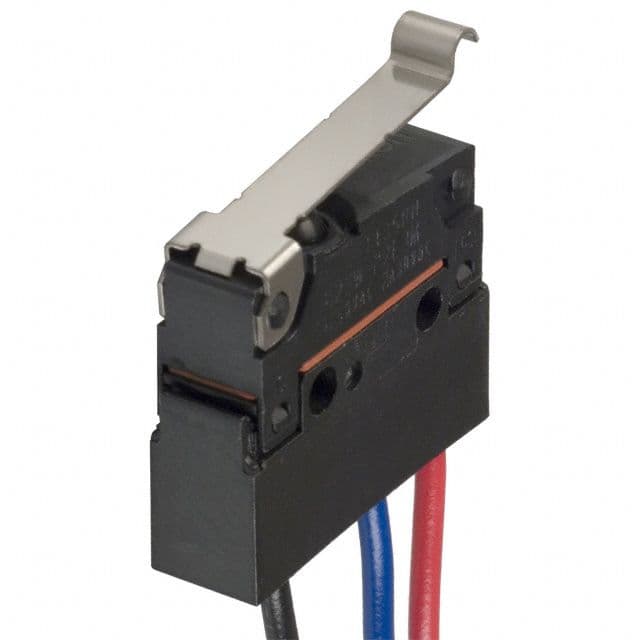

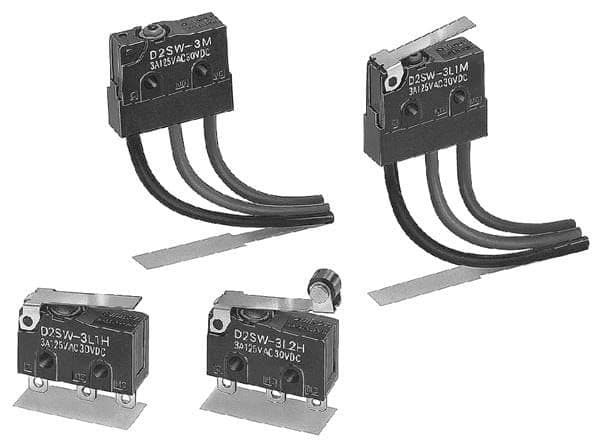

The D2SW-3MS-0 is a chassis mount switch with a SPST/SPDT configuration, rated for 30V DC and 125V AC. It has a current rating of 3A and an operating temperature range of -40°C to 85°C. The switch is designed for 200,000 electrical cycles and 5,000,000 mechanical cycles, with a differential travel of 0.004inch and overtravel of 0.02inch. It is available in bulk packaging and meets IP67, waterproof, and dust-tight ratings.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron D2SW-3MS-0 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current Rating | 3A |
| Differential Travel | 0.004inch |
| Electrical Life | 200000Cycles |
| Max Operating Temperature | 85°C |
| Mechanical Life | 5000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount |
| Operating Position | 0.33inch |
| Overtravel | 0.02inch |
| Package Quantity | 200 |
| Packaging | Bulk |
| Pretravel | 0.024inch |
| Ratings | IP67, Waterproof, Dust Tight |
| Series | D2SW |
| Switch Function | On-Mom |
| Termination | Wire Leads |
| Throw Configuration | SPST, SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| RoHS | Compliant |
